Bspp Countersunk Sealed Plug 9028-12

Specifications

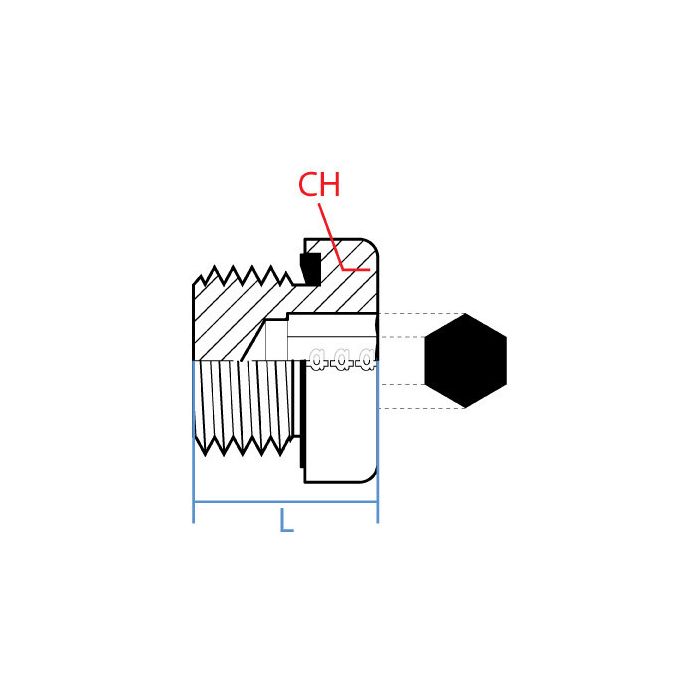

CH Width 32mm	L Length 21.1mm	Adaptall Material Steel	Adaptall Shape Plug	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Alternate Part Numbers Alternate Part Number MI-02116204, Alternate Part Number MINO-03671J02546	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9028-12	Product Weight 0.17 lbs

Product Questions & Answers 4

Product Questions & Answers

got a G 3/4 port that needs to be capped off on a hydraulic manifold block, will this plug seal it up right?

Question by: Cheryl A on Nov 29, 2025, 8:59 PM

For a G 3/4-14 BSPP male port, yes, that's exactly what this plug is built for. The countersunk design seats into the port and seals it off, and at 3/4 inch it matches that thread spec directly. Steel construction means it holds up in typical hydraulic environments without deforming under pressure or vibration.

Answer by: Customer Support on Dec 1, 2025, 8:33 PM

trying to cap off a BSPP port, is this plug the right thread for a 3/4?

Question by: Carl P on Jan 20, 2026, 2:48 PM

The key callout on this plug is G 3/4 - 14 with a male BSPP (parallel) thread. If your port is a G 3/4 BSPP female, that is the matching size and thread type.

Answer by: Customer Support on Jan 22, 2026, 6:17 AM

What size wrench do I need for this plug?

Question by: Cindy C on Dec 10, 2025, 8:40 AM

You'll need a 32mm wrench to tighten this BSPP countersunk sealed plug.

Answer by: Customer Support on Dec 11, 2025, 9:10 PM

what size thread is on this plug, and is it male or female?

Question by: Dustin T on Apr 19, 2025, 3:58 PM

Male G 3/4 - 14 BSPP thread, 3/4 inch. The countersunk head seats flush or recessed against the port face, so it stays out of the way once installed.

Answer by: Customer Support on Apr 21, 2025, 6:07 AM
