Bspp Countersunk Sealed Plug 9028-04

Specifications

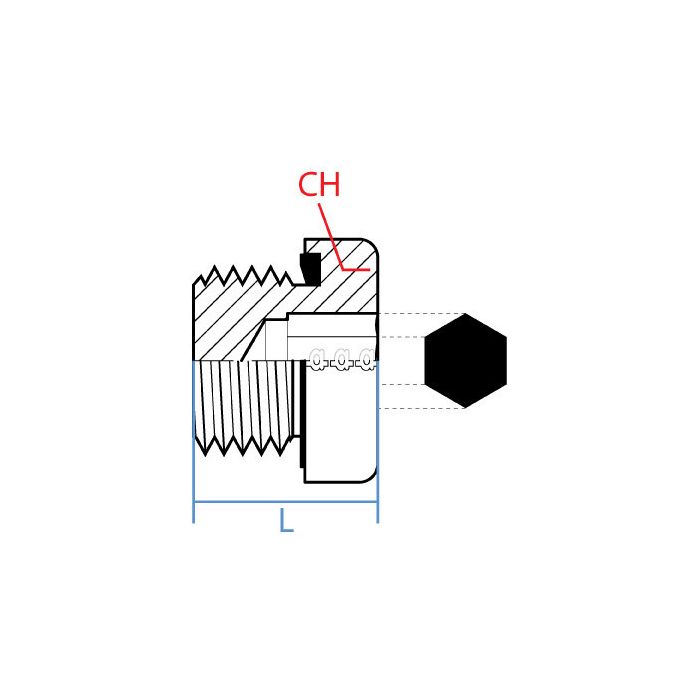

CH Width 19mm	L Length 17.1mm	Adaptall Material Steel	Adaptall Shape Plug	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9028-04	Product Weight 0.04 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a manifold block with a quarter-inch BSPP port I need to cap off. This plug gonna sit flush with the face or is it gonna stick out past it?

Question by: Danny R on Jan 1, 2026, 3:52 PM

That countersunk head profile is exactly what keeps it from protruding. It's built to sit flush or even recessed into the port face, so you won't have anything sticking up past the surface. Real handy when clearance around that port is tight or when another component needs to mount close by.

Answer by: Customer Support on Jan 3, 2026, 7:22 AM

How deep does this plug sit when it's screwed in? I'm workin' with limited space here.

Question by: Denise B on Dec 10, 2025, 3:00 PM

The overall length is 17.1mm, so that's how far it'll extend into the port when fully seated. Keep in mind the countersunk head will sit flush or slightly recessed, giving you a lower profile than a standard plug.

Answer by: Customer Support on Dec 12, 2025, 6:08 AM

got a G 1/4 bspP port on a manifold i need to cap off, is this the right kind of plug?

Question by: Roger R on May 30, 2025, 9:08 PM

For a BSPP threaded port, this plug matches a G 1/4 male thread and is made to close off unused ports in hydraulic circuits, valves, and manifolds that use BSPP ports.

Answer by: Customer Support on Jun 1, 2025, 6:19 AM
