Female Bspp X Female Jic Swiv. 9027-20-20

Specifications

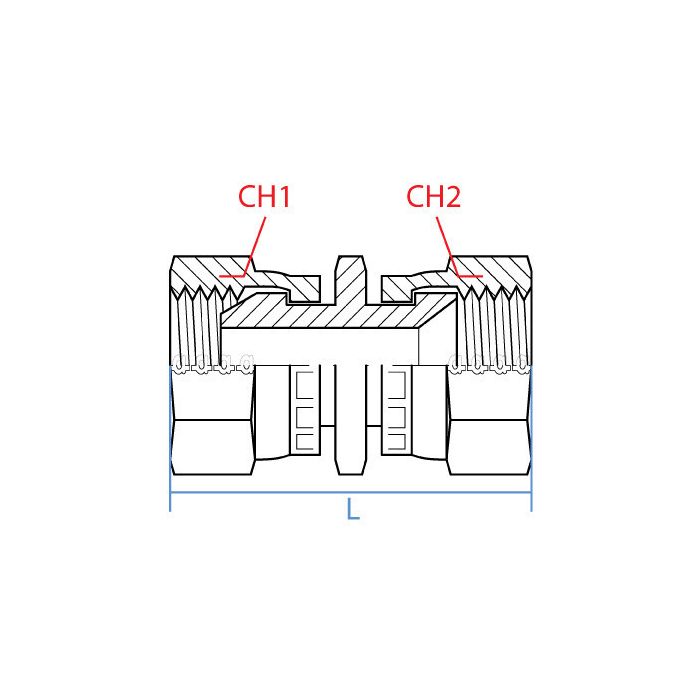

CH1 Width 51mm	CH2 Width 50mm	L Length 61.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender F	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout 1-5/8 - 12 UN	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9027-20-20	Product Weight 0.80 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a bspP hose end to a jic line, is this the straight adapter for that?

Question by: Steve G on Jul 3, 2025, 8:34 PM

Made for mixing those two standards, it has a female BSPP end on one side (G 1-1/4 - 11) and a female JIC swivel on the other (1-5/8 - 12 UN), both in the 1-1/4 inch size.

Answer by: Customer Support on Jul 5, 2025, 6:27 AM

Got a piece of equipment that's got a 1-1/4 BSPP port on one end and a JIC line coming off the other, this adapter gonna bridge them two together?

Question by: Chad B on Oct 4, 2025, 10:37 AM

Yeah, that's exactly what it's built for. One end is a female BSPP connection sized at 1-1/4 inch with a G 1-1/4 - 11 thread, and the other is a female JIC swivel also at 1-1/4 inch running a 1-5/8 - 12 UN thread. Steel construction, straight body, 61.7mm overall length. If your port and your line match those specs, it'll connect them clean.

Answer by: Customer Support on Oct 6, 2025, 8:54 AM

What size wrench do I need for the BSPP side of this fitting?

Question by: Gary D on Nov 16, 2025, 8:09 PM

For the BSPP side, you'll need a 51mm wrench.

Answer by: Customer Support on Nov 18, 2025, 4:29 PM
