Female Bspp X Female Jic Swiv.

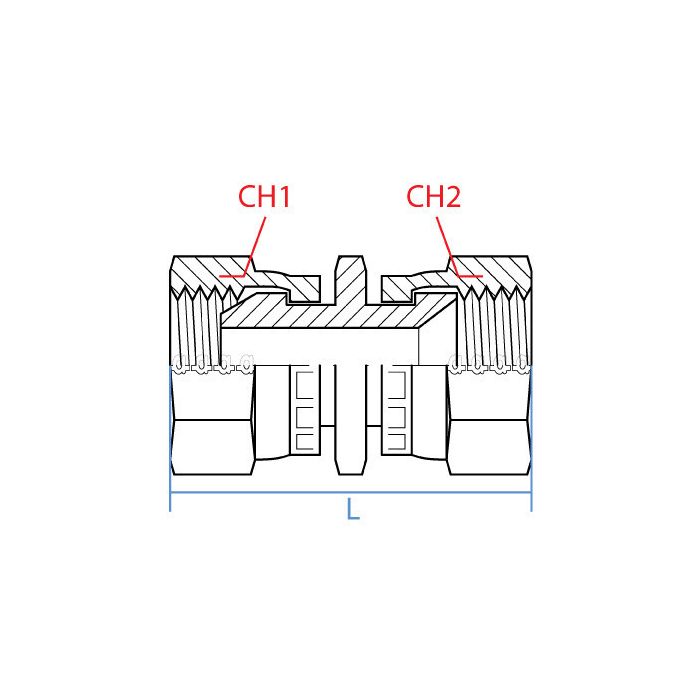

CH1 Width 41mm	CH2 Width 38mm	L Length 59mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender F	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9027-16-16	Product Weight 0.55 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a BSPP port on one piece of equipment and a JIC fitting on another, this the right adapter to bridge those two?

Question by: Lance P on Jul 12, 2025, 7:06 AM

That's what this one's built for. Side 1 is a G 1-11 female BSPP at 1 inch, and Side 2 is a 1-5/16-12 UN female JIC, also 1 inch. The swivel feature on the JIC end helps with alignment during hookup, so you're not fighting the connection to get everything to seat right. Steel construction throughout, straight profile, 59mm long. Should drop right into that application without any fuss.

Answer by: Customer Support on Jul 13, 2025, 4:58 PM
