Female Bspp X Female Jic Swiv.

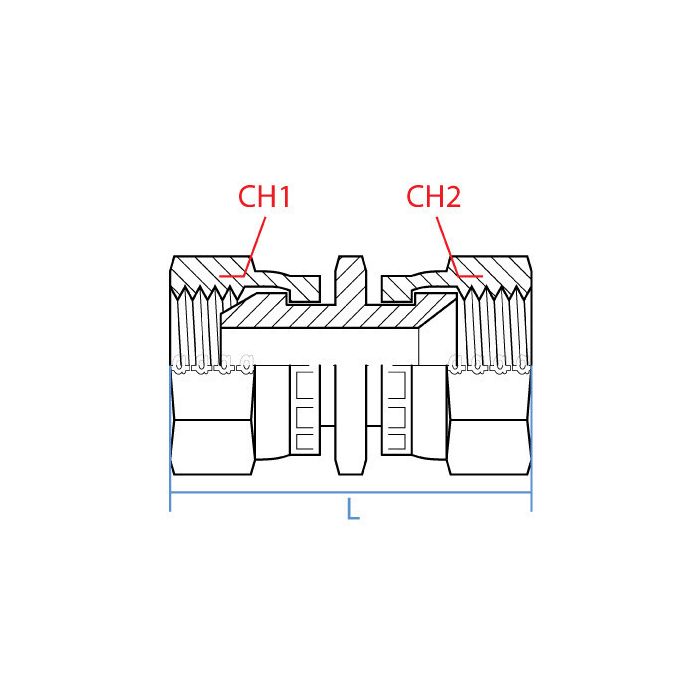

CH1 Width 32mm	CH2 Width 32mm	L Length 56mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender F	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 1-1/16 - 12 UN	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9027-12-12	Product Weight 0.35 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running G 3/4 BSPP on one end and need to tie into a JIC 1-1/16-12 fitting on the other, this the right connector for that?

Question by: Ricky F on Mar 3, 2026, 2:49 PM

That's what this fitting handles. One side is G 3/4-14 BSPP female and the other is a 1-1/16-12 UN JIC female swivel, both in 3/4" size. The swivel on the JIC end gives you a little wiggle room during installation so you're not fighting the line to get everything lined up straight.

Answer by: Customer Support on Mar 4, 2026, 3:35 PM
