Female Bspp X Female Jic Swiv. 9027-12-08

Specifications

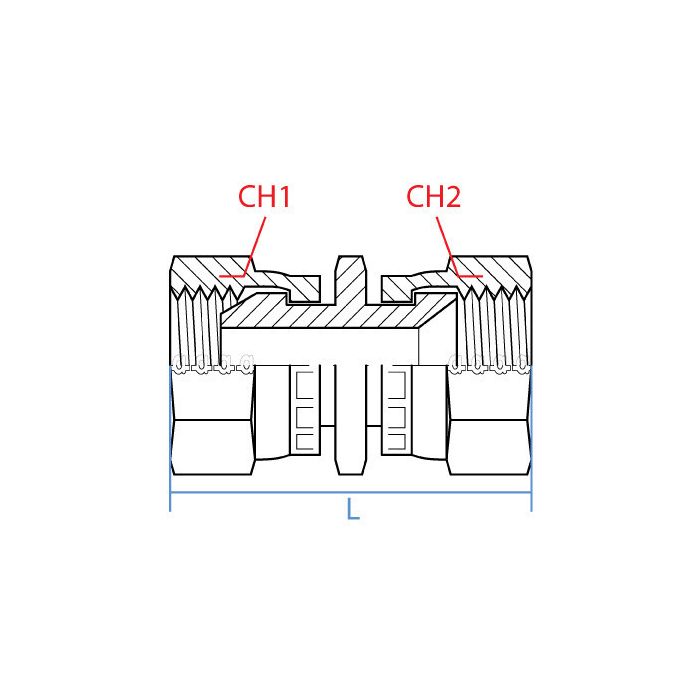

CH1 Width 32mm	CH2 Width 24mm	L Length 48.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender F	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9027-12-08	Product Weight 0.17 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a G 3/4-14 port to a JIC hose end, is this the right adapter?

Question by: Pete W on May 6, 2025, 6:18 AM

Match the threads on both sides and it lines up. Side 1 is a female BSPP G 3/4 - 14, and side 2 is a female JIC swivel with 3/4 - 16 UNF threads.

Answer by: Customer Support on May 7, 2025, 2:40 PM

Got a piece of equipment running BSPP on one end and JIC on the other, this the kind of adapter that bridges those two without needing extra fittings in between?

Question by: Marvin M on Aug 29, 2025, 10:01 AM

That's what this one's for. One side is Female BSPP at G 3/4 - 14 thread, and the other is a Female JIC swivel at 3/4 - 16 UNF. Both sides are female, so you're threading male fittings into each end. The straight body keeps the connection clean without adding bends or bulk, and the overall length runs 48.1mm so it won't eat up much space in a tight hydraulic connections layout.

Answer by: Customer Support on Aug 31, 2025, 8:46 AM

Will this here fitting work to hook up a BSPP fitting to a JIC swivel?

Question by: Sheila R on Nov 26, 2025, 5:13 PM

Absolutely, this steel adapter is made to connect a female BSPP fitting to a female JIC swivel.

Answer by: Customer Support on Nov 27, 2025, 8:36 PM
