Female Bspp X Female Jic Swiv.

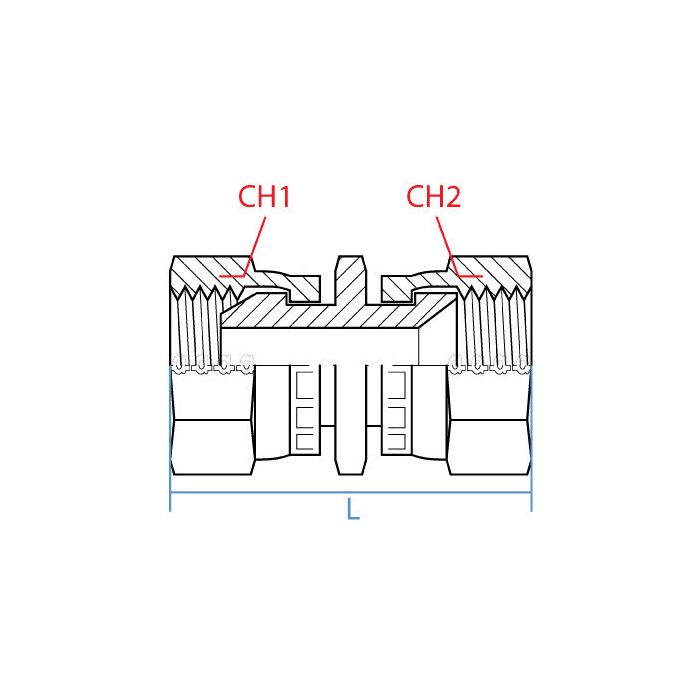

CH1 Width 30mm	CH2 Width 27mm	L Length 51mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 5/8 - 14	Side 1 Gender F	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender F	Side 2 Size 5/8"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9027-10-10	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment running BSPP on one port and JIC on the other, this fitting supposed to handle that kind of crossover in a straight shot?

Question by: Debbie M on Dec 1, 2025, 2:50 PM

That's what it's built for. One end is a G 5/8-14 female BSPP and the other is a 7/8-14 UNF female JIC swivel, so it bridges those two thread standards in a single straight fitting without needing extra adapters or couplings in between. Both sides are sized at 5/8", so the flow path stays consistent end to end. Steel construction holds up well in working hydraulic environments where you need solid thread engagement and durability over the long haul.

Answer by: Customer Support on Dec 3, 2025, 2:18 PM

Can I use this to adapt from a BSPP fitting to a JIC on my tractor?

Question by: Dustin F on Nov 19, 2025, 10:35 AM

This adapter bridges the gap between a G 5/8-14 female BSPP port and a 7/8-14 UNF female JIC swivel, so it should work as long as those are the sizes you need on your tractor. Just make sure everything is tightened properly.

Answer by: Customer Support on Nov 20, 2025, 5:16 PM
