Female Bspp X Female Jic Swiv. 9027-08-08

Specifications

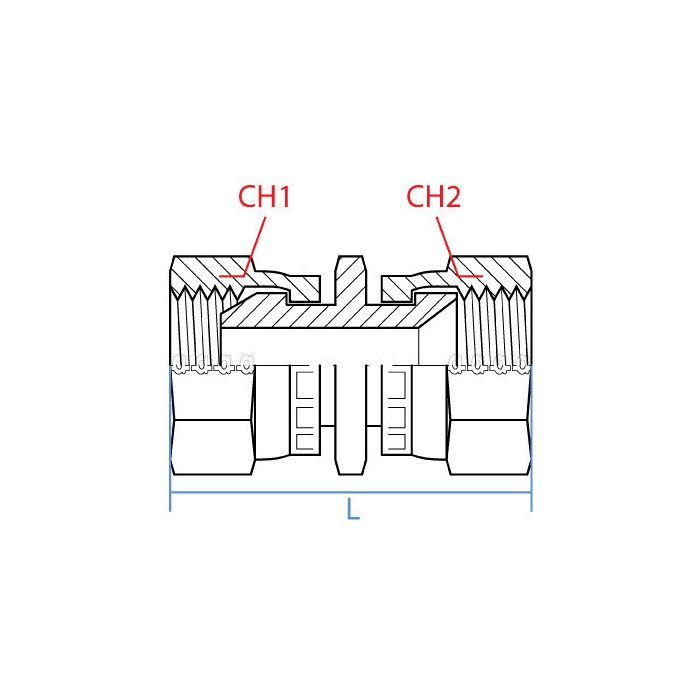

CH1 Width 27mm	CH2 Width 22mm	L Length 47mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9027-08-08	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

got a line running G 1/2 BSPP on one end and JIC 3/4-16 on the other, this the right piece to bridge those two?

Question by: Curt J on Nov 19, 2025, 6:18 PM

That's what this adapter is built for. One side is a female BSPP at G 1/2-14 and the other is a female JIC at 3/4-16 UNF, both in the 1/2" size range. The straight steel body keeps it simple with no angled offset, so it drops right in where space isn't a concern. Overall length comes in at 47mm, which is pretty compact for a two-connection bridge like this.

Answer by: Customer Support on Nov 21, 2025, 6:15 AM

trying to hook a BSPP port to a JIC line, is this the right adapter for that?

Question by: Denise T on Oct 15, 2025, 7:49 AM

For a straight adapter that goes from female BSPP on one side to a female JIC swivel on the other, this one matches that job. Side 1 is BSPP G 1/2 - 14 female, and Side 2 is JIC 3/4 - 16 UNF female, both in a 1/2 inch size.

Answer by: Customer Support on Oct 16, 2025, 11:49 AM

Will this fitting work with both BSPP and JIC setups, or do I need different adapters for each?

Question by: Diane M on Aug 30, 2025, 4:16 PM

This adapter is designed to connect a female BSPP fitting to a female JIC fitting. So yes, it will directly adapt between those two thread types, eliminating the need for separate adapters.

Answer by: Customer Support on Sep 1, 2025, 1:47 PM
