Female Bspp X Female Jic Swiv. 9027-06-06

Specifications

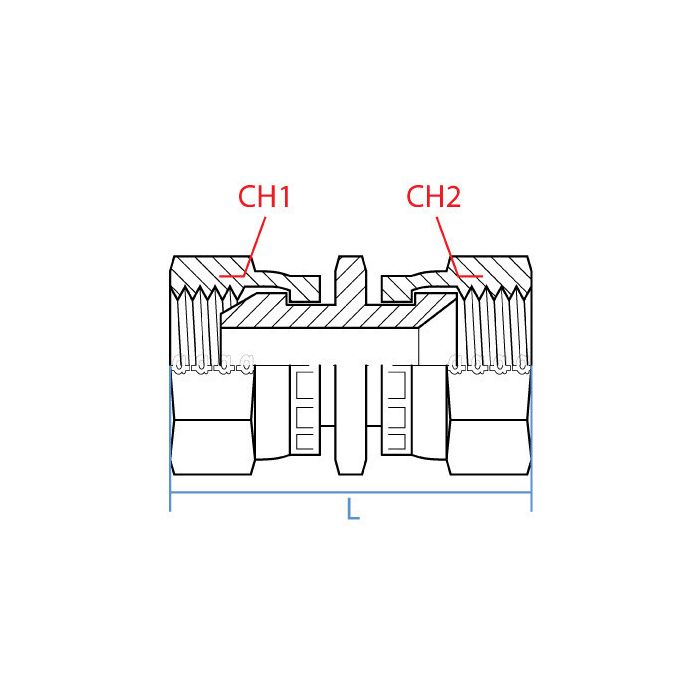

CH1 Width 22mm	CH2 Width 19mm	L Length 42mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender F	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9027-06-06	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up in a hydraulic system running at, say, 2000 psi?

Question by: Duane D on Mar 12, 2026, 4:27 PM

This adapter is made from durable steel, so it should provide secure and reliable connections in demanding hydraulic systems.

Answer by: Customer Support on Mar 13, 2026, 8:12 PM

Got a line running G 3/8 BSPP on one end and JIC on the other, this swivel adapter gonna bridge that gap without needing extra fittings in between?

Question by: Johnny C on Feb 8, 2026, 9:46 PM

That's what it's built for. One end is G 3/8-19 BSPP female, the other is 9/16-18 UNF JIC female, both in 3/8" size, so it handles that thread mismatch in a single piece. Steel construction keeps it solid under the kind of conditions most hydraulic lines deal with day to day.

Answer by: Customer Support on Feb 10, 2026, 6:03 AM

trying to hook up a hose that’s got a 9/16-18 JIC end to a port that’s G 3/8-19 BSPP. Is this the right adapter?

Question by: Tammy M on Aug 10, 2025, 7:41 PM

Match the thread callouts and you’re in the right ballpark: one side is female G 3/8-19 BSPP and the other side is female 9/16-18 UNF JIC, both in a 3/8 inch size.

Answer by: Customer Support on Aug 12, 2025, 4:19 PM
