Female Bspp X Female Jic Swiv.

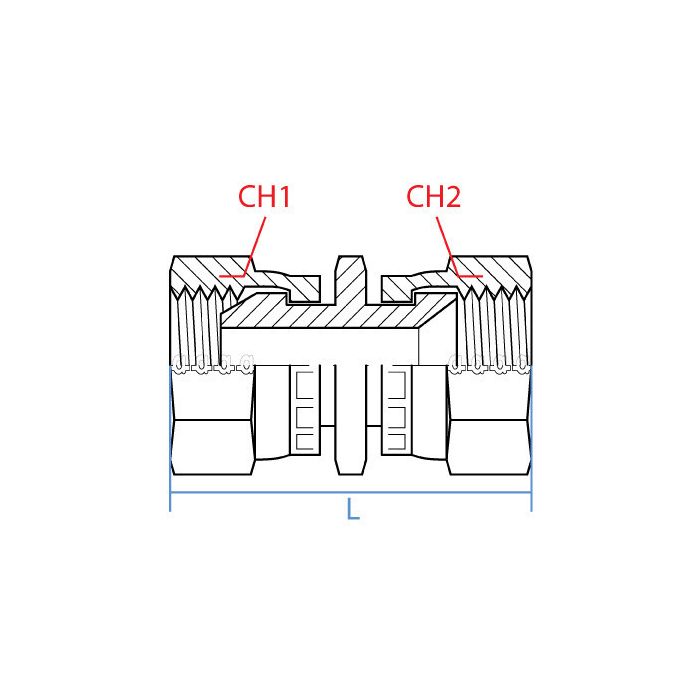

CH1 Width 19mm	CH2 Width 14mm	L Length 37.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9027-04-04	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay in a hydraulic setup with some decent pressure behind it?

Question by: Shane W on Jul 5, 2025, 6:36 PM

Being manufactured from steel, this adapter is built to handle the pressures typically found in hydraulic circuits.

Answer by: Customer Support on Jul 7, 2025, 6:21 AM

Got a line running BSPP on one end and JIC on the other, this fitting gonna let me hook those up without having to rotate the whole line?

Question by: Carl M on Oct 12, 2025, 10:47 AM

That's what it's built for. The JIC side has a swivel on it, so you can get the connection made without spinning the hose or tube line to thread it in. Makes life a lot easier when you're working in a spot where there ain't much room to maneuver. BSPP side is a fixed female G 1/4-19, and the JIC side is a female 7/16-20 UNF swivel. Both ports are 1/4 inch. Steel construction, straight through, 37.5mm overall length.

Answer by: Customer Support on Oct 13, 2025, 5:16 PM
