Swivel Jic X Swivel Jic Union 9026-32-32

Specifications

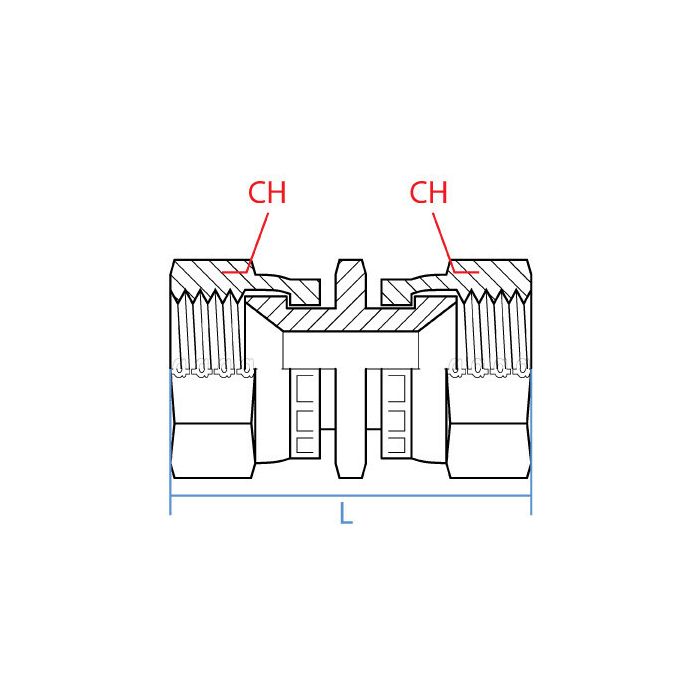

CH1 Width 70mm	CH2 Width 70mm	L Length 92mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 2-1/2 - 12 UN	Side 1 Gender F	Side 1 Size 2"	Side 1 Type Jic	Side 2 Callout 2-1/2 - 12 UN	Side 2 Gender F	Side 2 Size 2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9026-32-32	Product Weight 1.06 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of pressure can this union handle?

Question by: Shawn B on Dec 22, 2025, 8:14 AM

Designed for high-pressure environments, this Adaptall union fitting provides a reliable connection in demanding hydraulic assemblies.

Answer by: Customer Support on Dec 24, 2025, 6:25 AM

both ends on this thing are female JIC, that right? trying to connect two male JIC lines together and just want to make sure this does what I think it does

Question by: Wade W on Nov 26, 2025, 5:30 PM

Female JIC on both sides is exactly what you've got here. Each end runs a 2-1/2 - 12 UN thread, sized for 2-inch JIC connections, so if you've got two male JIC line ends that need to meet up, this union bridges them straight through. The swivel feature on both ends also makes it a lot easier to thread in without having to rotate the whole assembly.

Answer by: Customer Support on Nov 28, 2025, 10:20 AM

i’ve got a hose end that’s 2-1/2 12 UN female JIC, is this union the right match on both sides?

Question by: Ross A on Nov 14, 2025, 9:06 AM

Both ends on this union are female JIC with 2-1/2 - 12 UN threads, listed as 2 inch size on each side, so it matches that same callout on both connections.

Answer by: Customer Support on Nov 16, 2025, 7:30 AM
