Swivel Jic X Swivel Jic Union

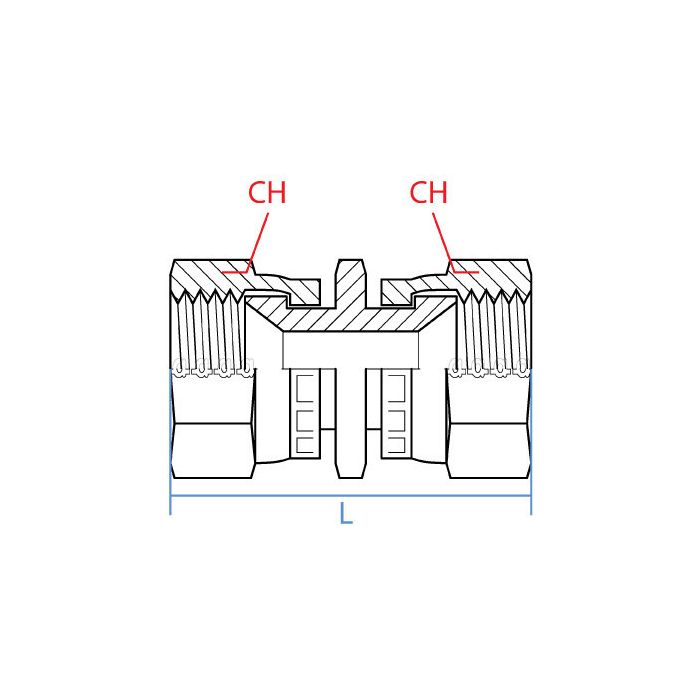

CH1 Width 38mm	CH2 Width 32mm	L Length 63mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender F	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout 1-1/16 - 12 UN	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9026-16-12	Product Weight 0.50 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running 1-inch JIC on one end and 3/4-inch JIC on the other, does this union handle that crossover in a straight shot?

Question by: Kirk M on Jan 23, 2026, 6:32 PM

That's what this fitting does. One side connects to a 1-inch female JIC with a 1-5/16-12 UN thread, and the other picks up the 3/4-inch female JIC at 1-1/16-12 UN. Both ends swivel, so you get some wiggle room during installation without fighting the line to get it seated right. The body is straight steel, 63mm overall, so it's a compact solution for bridging those two sizes without adding a bunch of length to the assembly.

Answer by: Customer Support on Jan 25, 2026, 5:08 PM
