Swivel Jic X Swivel Jic Union

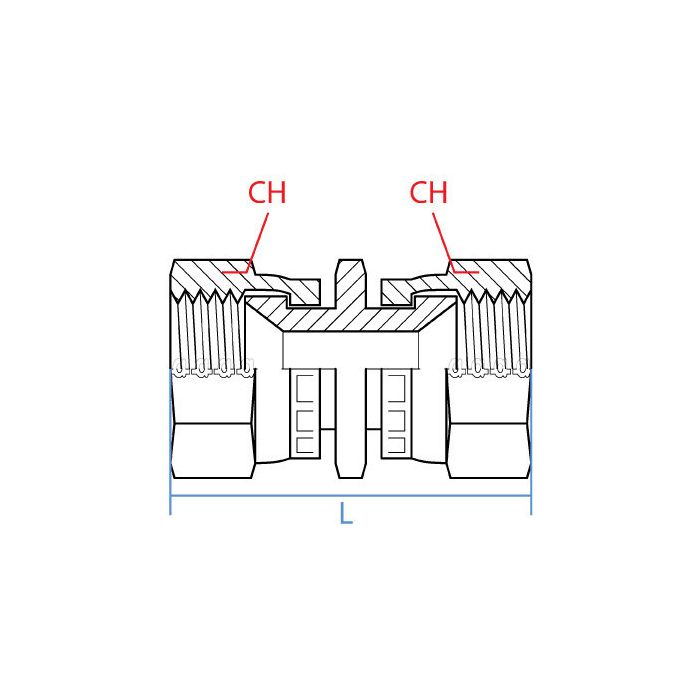

CH1 Width 25mm	CH2 Width 22mm	L Length 52mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender F	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9026-10-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line running 5/8" on one end and 1/2" on the other, will this union tie them two together direct, or do I need something else in between?

Question by: Larry C on May 30, 2025, 1:13 PM

That's exactly what this fitting handles. One side threads onto a 7/8-14 UNF JIC connection for the 5/8" line, and the other picks up the 3/4-16 UNF JIC connection for the 1/2" line. Both ends swivel, so you can get it seated without having to twist the hoses themselves. Steel construction, straight body, 52mm end to end. No additional adapters needed for that size combination.

Answer by: Customer Support on Jun 1, 2025, 10:47 AM

trying to hook a 5/8 jic hose to a 1/2 jic line, is this the right union for that?

Question by: Freddie B on Feb 5, 2026, 9:16 PM

For stepping between those two JIC sizes, this union matches up as 5/8 inch JIC female swivel on one end and 1/2 inch JIC female swivel on the other. The thread callouts are 7/8 - 14 UNF on Side 1 and 3/4 - 16 UNF on Side 2.

Answer by: Customer Support on Feb 7, 2026, 3:51 PM
