Swivel Jic X Swivel Jic Union

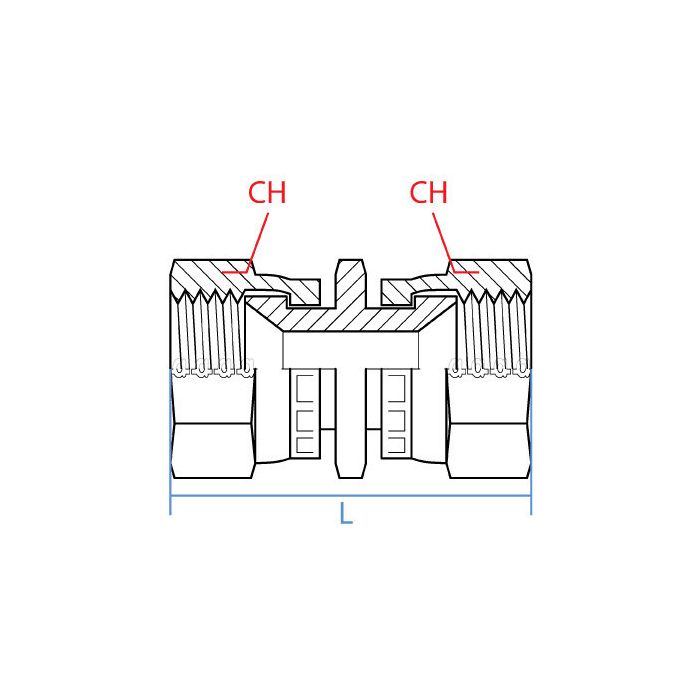

CH1 Width 19mm	CH2 Width 14mm	L Length 41mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender F	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9026-06-04	Product Weight 0.05 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 3/8 JIC line on one end and a 1/4 JIC on the other -- will this union connect the two without needing extra fittings in between?

Question by: Carl C on Jun 26, 2025, 11:07 AM

That's exactly what it's built for. One end threads onto a 9/16-18 UNF port for the 3/8 JIC side, and the other end handles a 7/16-20 UNF port for the 1/4 JIC side. Both ends swivel, so you've got some wiggle room during installation if the lines aren't perfectly aligned. One union, two different JIC sizes, straight through.

Answer by: Customer Support on Jun 28, 2025, 6:54 AM
