Swivel Jic X Swivel Jic Union 9026-05-05

Specifications

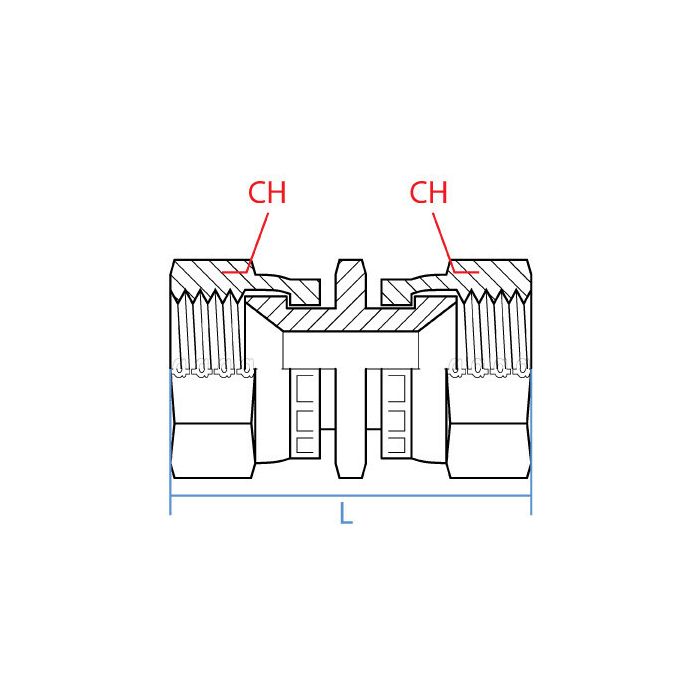

CH1 Width 16mm	CH2 Width 16mm	L Length 38mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender F	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout 1/2 - 20 UNF	Side 2 Gender F	Side 2 Size 5/16"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9026-05-05	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got two hoses with 1/2-20 UNF female JIC ends, will this union hook em together straight?

Question by: Billy T on Dec 11, 2025, 1:22 PM

For joining two female JIC connections with 1/2 - 20 UNF threads, this straight swivel JIC x swivel JIC union is the right match. Both sides are female JIC, both callouts are 1/2 - 20 UNF, and it stays compact at 38mm long.

Answer by: Customer Support on Dec 13, 2025, 9:34 AM

both ends on this thing are female JIC, that right? trying to connect two male JIC lines together and want to make sure I ain't reading it wrong

Question by: Tommy M on Dec 28, 2025, 9:15 PM

Correct on both counts. Each end carries a female JIC swivel connection with a 1/2-20 UNF thread, so it's built to mate with male JIC fittings on both sides. That's exactly the use case this union is made for, joining two male JIC lines into a single continuous connection. The swivel feature on each end also gives you a little rotational flexibility during installation, which helps a lot when the lines aren't perfectly aligned.

Answer by: Customer Support on Dec 30, 2025, 12:11 PM

Reckon this'll hold up alright in a hydraulic system running around 2000 PSI? Don't want no leaks.

Question by: Dustin F on Oct 13, 2025, 7:34 AM

Constructed from durable steel, this union is designed to maintain secure, leak-proof connections even under the pressure conditions common in hydraulic circuits. Its robust build should give you the reliability you're after.

Answer by: Customer Support on Oct 14, 2025, 3:23 PM
