Female Bspp Swivel X Swivel 9025-10-10

Specifications

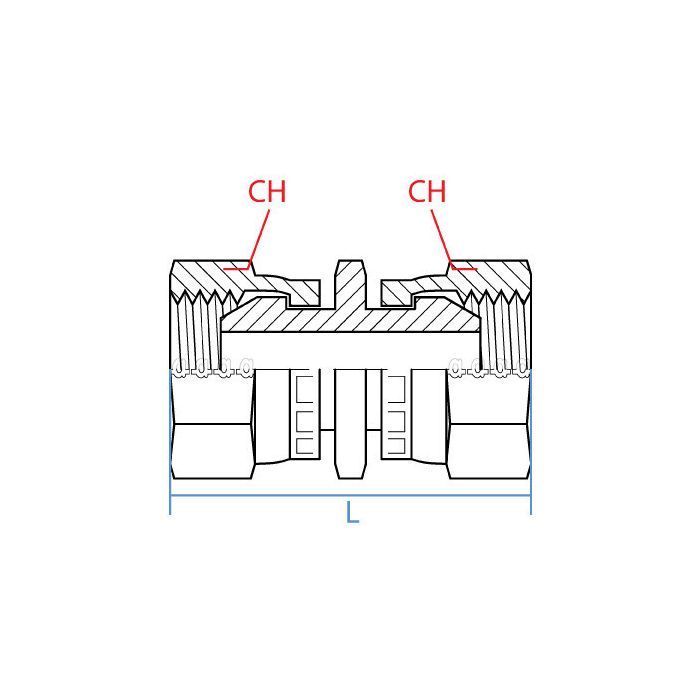

CH1 Width 30mm	CH2 Width 30mm	L Length 49.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 5/8 - 14	Side 1 Gender F	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout G 5/8 - 14	Side 2 Gender F	Side 2 Size 5/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9025-10-10	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

both ends are female BSPP swivel on this thing, right? Just want to make sure before I order it for a hose assembly I'm putting together.

Question by: Clint A on Jul 8, 2025, 9:40 PM

Both sides are female BSPP swivel connections, yes. Each end carries a G 5/8-14 thread callout at 5/8 inch, so you're getting a true swivel-to-swivel straight fitting all the way through. Works well for hose assemblies where you need a little rotational freedom on both ends to keep things from twisting up under pressure.

Answer by: Customer Support on Jul 10, 2025, 7:12 PM

got two hoses with female BSPP swivel ends, will this join em straight together in a pinch?

Question by: Brent B on Nov 17, 2025, 1:11 PM

For tying two BSPP swivel female ends together, this fitting matches that setup since it is female BSPP swivel on both sides with a straight body. Both ends are G 5/8-14 with a 5/8 inch size.

Answer by: Customer Support on Nov 19, 2025, 6:14 AM

Will this fitting work with other BSPP stuff I already have, or is it a proprietary kinda deal?

Question by: Carl Y on Feb 8, 2026, 5:58 PM

This fitting uses standard BSPP (British Standard Parallel Pipe) threads, so it should be compatible with other fittings conforming to that standard. The Adaptall side 1 and side 2 callouts are G 5/8 - 14, which is the specific BSPP thread size.

Answer by: Customer Support on Feb 10, 2026, 7:28 AM
