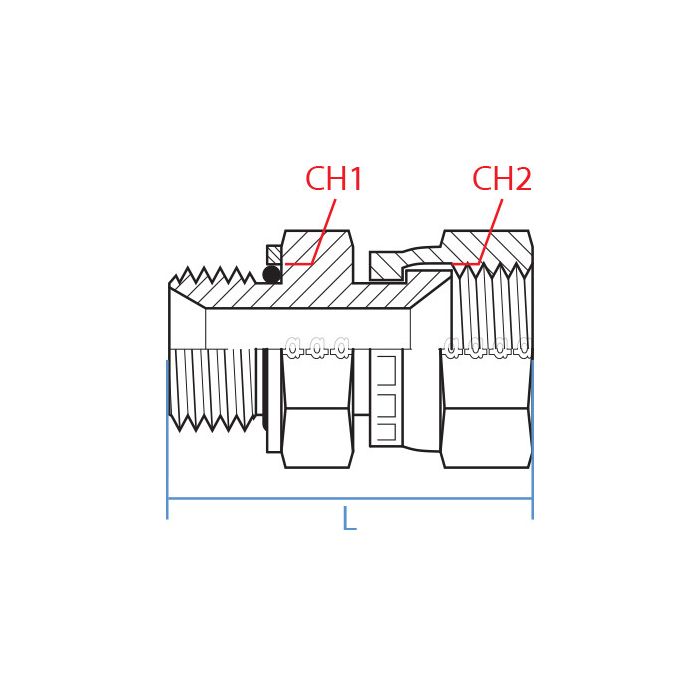

Male Metric (Sealed) X F. Jic

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size 18mm	Side 1 Type Metric	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9024S-18-08	Product Weight 0.17 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a machine with an M18 x 1.5 metric port on it and need to tie into a JIC 1/2" line. This the right piece for that?

Question by: Larry W on Oct 16, 2025, 10:33 AM

That's what this adapter is built for. One end is a male M18 x 1.5 metric sealed thread, and the other is a female 3/4-16 UNF JIC, which is your standard JIC 1/2" line connection. The sealed metric side uses a compression-style thread form at the port face, so you get a solid seal on that end. The female JIC side accepts a standard 37-degree flare fitting. Straight configuration, steel construction, made by Adaptall.

Answer by: Customer Support on Oct 18, 2025, 6:54 AM

trying to hook a metric port up to a jic hose, is this the right adapter for that?

Question by: Janice W on Jan 13, 2026, 3:28 PM

For mixed thread setups, it bridges a male M18 x 1.5 metric sealed connection on one side to a female 3/4-16 UNF JIC on the other, so you can mate a metric port to a standard 37 degree JIC flare fitting.

Answer by: Customer Support on Jan 15, 2026, 9:48 AM
