Male Metric-Female Jic Swivel

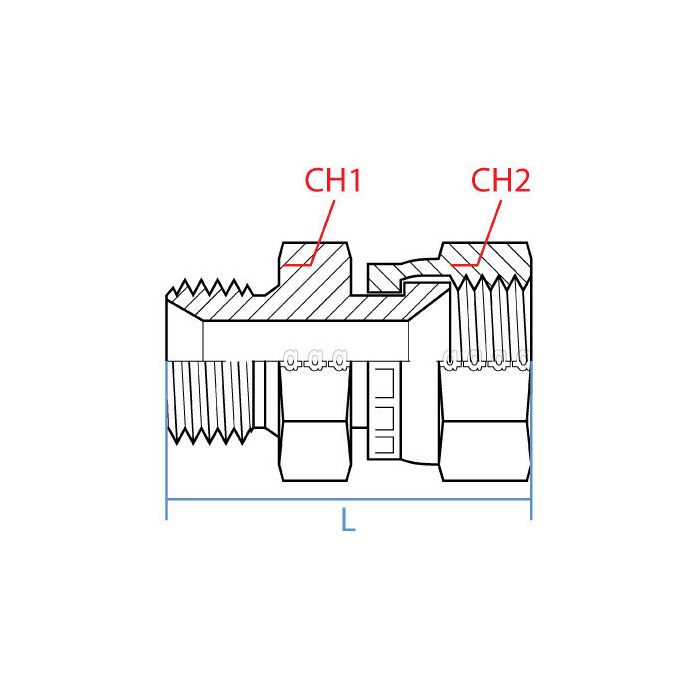

CH1 Width 24mm	CH2 Width 19mm	L Length 39mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size 18mm	Side 1 Type Metric	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9024-18-06	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up if I'm running hydraulic fluid through it pretty much all day, every day?

Question by: Randy R on Sep 19, 2025, 9:46 PM

Designed for demanding environments, this fitting is crafted from durable steel, which should provide reliable performance even with continuous use in hydraulic systems.

Answer by: Customer Support on Sep 21, 2025, 6:39 AM

what's the thread size on the metric end of this fitting, and will it mate up with an M18 x 1.5 port?

Question by: Wade G on Apr 29, 2025, 12:51 PM

the male metric side is M18 x 1.5, so if your port is calling out that same thread, you're good to go. The female JIC end is 9/16-18 UNF, which corresponds to a 3/8" JIC size. That's the whole point of this adapter, bridging a metric threaded connection on one side to a JIC swivel on the other without needing extra pieces in between.

Answer by: Customer Support on Apr 30, 2025, 2:05 PM
