Male Metric-Female Jic Swivel 9024-14-06

Specifications

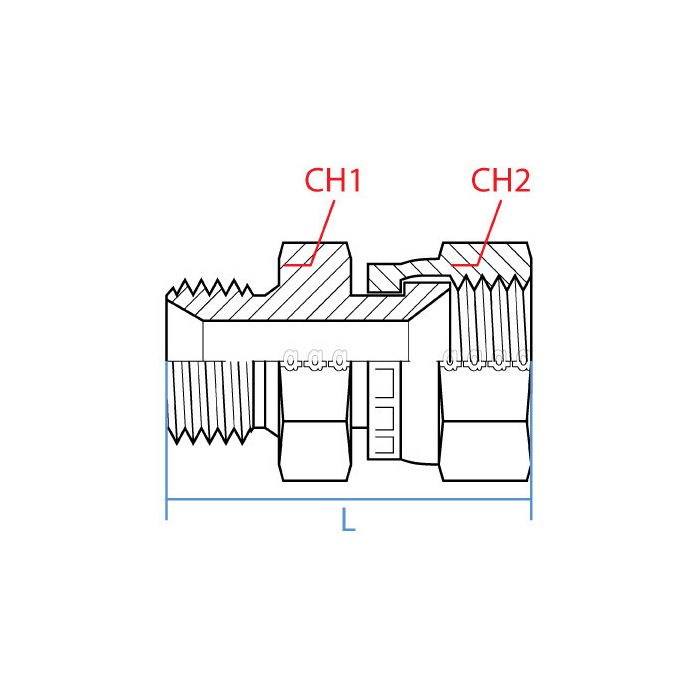

CH1 Width 19mm	CH2 Width 19mm	L Length 37mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size 14mm	Side 1 Type Metric	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Jic	Alternate Part Numbers Alternate Part Number C1HJ89	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9024-14-06	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 3/8 JIC, will this adapter mate up to it without twisting everything up?

Question by: Gary E on Apr 14, 2025, 8:48 AM

On the JIC side you get a 9/16-18 UNF female swivel that matches a 3/8 inch JIC line size, so the hose end can be tightened while the swivel lets you clock the assembly without spinning the hose.

Answer by: Customer Support on Apr 15, 2025, 9:22 PM

Got a metric port on my hydraulic manifold and need to hook up a JIC hose end to it, this the right kind of adapter for that?

Question by: Carl H on Jun 18, 2025, 8:32 PM

That's the situation this part is built for. One end is an M14 x 1.5 male metric thread, so it'll thread right into a metric port. The other end is a 9/16-18 UNF female JIC swivel, which accepts a standard 3/8" JIC hose or tube assembly. The swivel feature on the JIC side is worth noting too, it lets you orient the hose without putting any twist in the line during assembly, which saves a headache on tight installations.

Answer by: Customer Support on Jun 20, 2025, 12:56 PM

Just want to make sure, will this connect an M14 metric thread to a 9/16 JIC?

Question by: Dean P on Dec 26, 2025, 8:16 AM

Yes, this adapter is designed to connect an M14 x 1.5 male metric thread to a 9/16-18 UNF female JIC swivel fitting.

Answer by: Customer Support on Dec 27, 2025, 9:45 PM
