Male Npt X Female Bspp Swivel

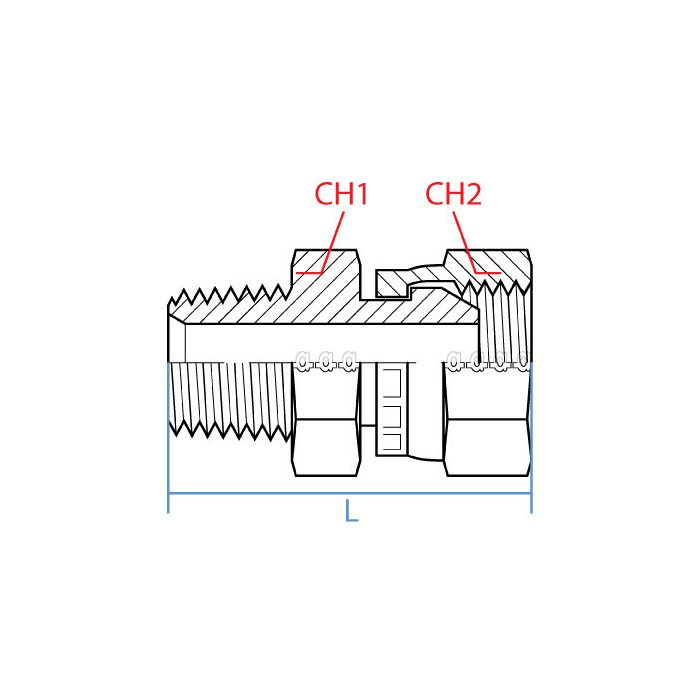

CH1 Width 27mm	CH2 Width 27mm	L Length 50mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 14 NPTF	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Npt	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9023-12-08	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a machine here running 3/4 NPT ports and the component I'm hooking into has a 1/2 BSPP female port on it. This fitting bridge that gap straight across?

Question by: Rusty M on Dec 2, 2025, 5:48 PM

Yeah, that's exactly what this one's for. The male end is 3/4-14 NPTF, which threads right into your NPT port, and the female swivel side accepts a 1/2 BSPP connection at G 1/2-14. Straight profile, so no angle change in the line routing. The size step-down from 3/4 to 1/2 is built into the fitting itself, so no additional reducer needed at that junction.

Answer by: Customer Support on Dec 4, 2025, 10:41 AM

trying to hook a 3/4 npt port to a g 1/2 bspp hose end, is this the right adapter?

Question by: Larry F on Apr 23, 2025, 7:31 AM

For mixed thread standards, it matches that combo: one side is a 3/4 inch male NPTF thread (3/4-14) and the other side is a 1/2 inch female BSPP swivel (G 1/2-14).

Answer by: Customer Support on Apr 25, 2025, 6:09 AM
