Male Npt X Female Bspp Swivel 9023-08-06

Specifications

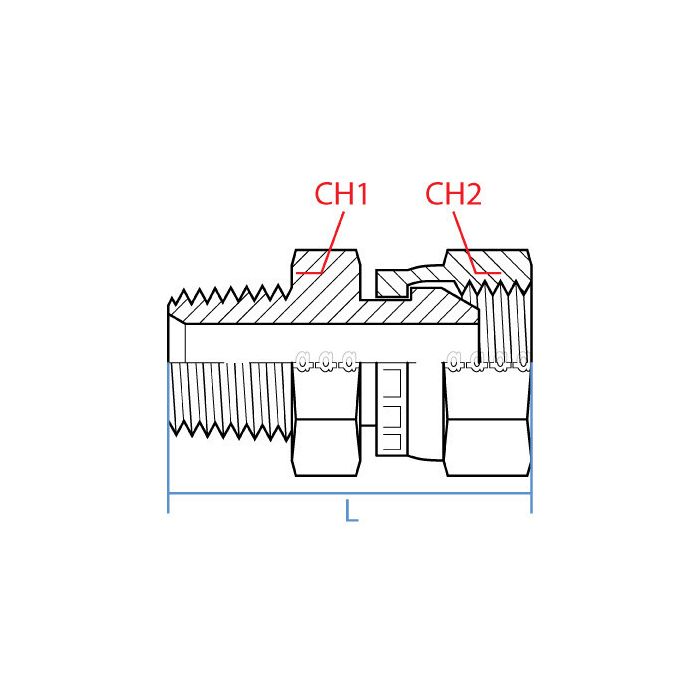

CH1 Width 22mm	CH2 Width 22mm	L Length 47mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 14 NPTF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Npt	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9023-08-06	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

What kinda material is this fitting made outta?

Question by: Joyce H on Aug 22, 2025, 9:59 AM

This fitting is constructed from steel, ensuring durability for hydraulic applications.

Answer by: Customer Support on Aug 23, 2025, 8:11 PM

Got a piece of equipment running G 3/8-19 BSPP ports and the line coming off it is NPT. This the right fitting to make that connection work?

Question by: Norm E on Feb 3, 2026, 9:28 PM

That's exactly what this adapter is built for. One end is 1/2-14 NPTF male and the other is G 3/8-19 female BSPP with a swivel, so it bridges those two thread standards in a straight configuration. The swivel on the BSPP side helps with alignment when you're making the connection, which saves a lot of grief during installation. Both ends measure 22mm across and the overall length comes in at 47mm, so account for that in your layout.

Answer by: Customer Support on Feb 5, 2026, 7:05 AM

got a hose with 1/2-14 nptf on it, will this adapt it over to a G 3/8-19 port?

Question by: Donna W on Jan 28, 2026, 10:13 AM

For that situation, the fitting matches a 1/2 - 14 NPTF male on one end and a G 3/8 - 19 female BSPP swivel on the other, so it’s meant to bridge those two thread types.

Answer by: Customer Support on Jan 29, 2026, 1:05 PM
