Male Npt X Female Bspp Swivel 9023-02-02

Specifications

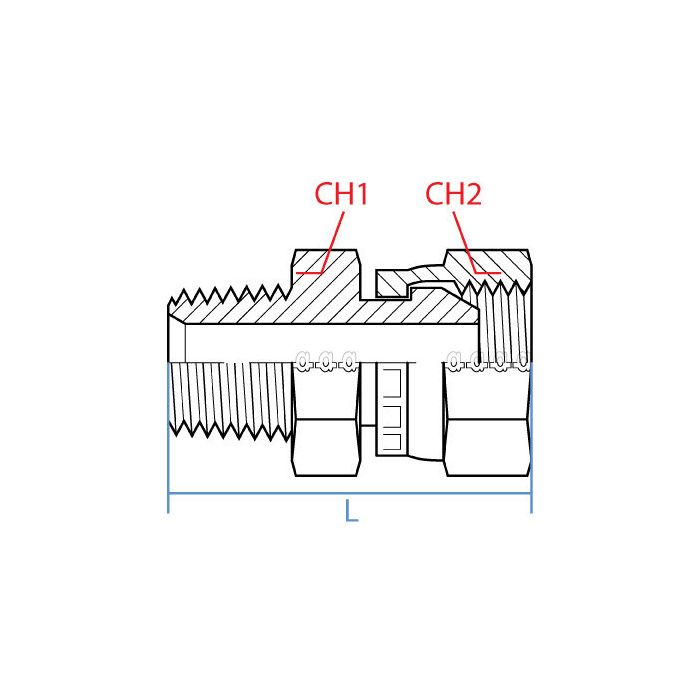

CH1 Width 15mm	CH2 Width 14mm	L Length 29.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/8 - 27 NPTF	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Npt	Side 2 Callout G 1/8 - 28	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9023-02-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the thread setup on both ends of this fitting, NPT on one side and something metric on the other?

Question by: Brett J on Dec 10, 2025, 1:15 PM

One end is a 1/8-27 NPTF male thread, which is the standard tapered pipe thread common on most North American hydraulic equipment. The other end is a G 1/8-28 female BSPP swivel, which is the British Standard Parallel Pipe thread used widely on European and international components. So yeah, one side NPT, one side BSPP, straight configuration, both at 1/8 inch size.

Answer by: Customer Support on Dec 12, 2025, 10:37 AM

Will this fitting work for connecting something with NPT threads to somethin' with BSPP threads?

Question by: Brett F on Jan 26, 2026, 9:43 AM

This straight fitting provides a reliable conversion between NPT and BSPP thread types, with a 1/8" NPTF male end and a G 1/8-28 female BSPP swivel end.

Answer by: Customer Support on Jan 27, 2026, 10:54 AM

trying to hook a 1/8 npt line up to a G 1/8 bspp port, is this the right adapter?

Question by: Kent T on Apr 28, 2025, 9:05 PM

For converting between those two thread standards, it matches up as 1/8 to 1/8. Side one is a 1/8 to 27 NPTF male thread, and side two is a G 1/8 to 28 female BSPP swivel connection.

Answer by: Customer Support on Apr 30, 2025, 5:04 PM
