Mjic X Fem.Flat China Metric

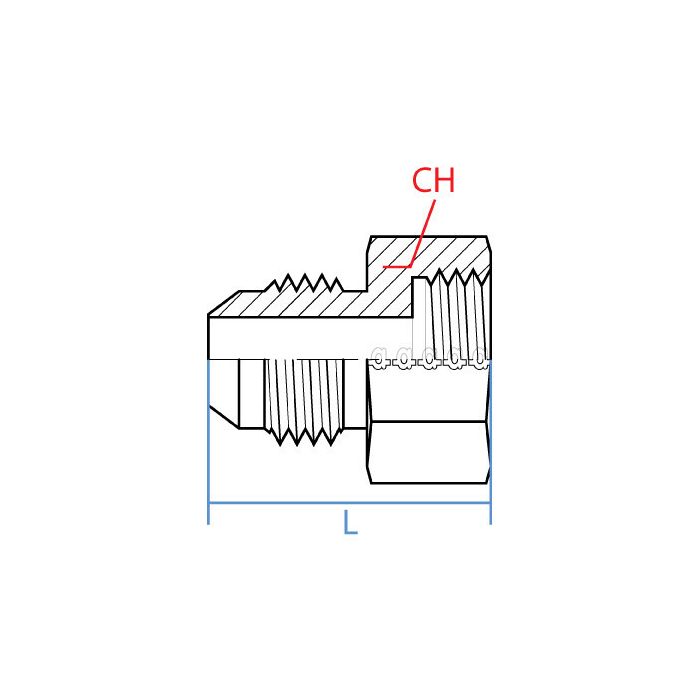

CH Width 27mm	L Length 28.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size 22mm	Side 2 Type Metric Flat Face	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022FC-08-22	Product Weight 0.13 lbs

Product Questions & Answers 1

Product Questions & Answers

got a JIC fitting on my hydraulic line and need to tie into a metric flat face port on some equipment we picked up, this the right adapter for that?

Question by: Randy P on Jul 13, 2025, 11:03 AM

That's exactly the crossover this part handles. One end is a 3/4-16 UNF male JIC, which is your standard 1/2" JIC fitting. The other end is a female M22 x 1.5 metric flat face port connection. Steel construction, straight body, so it threads right in without any angles or offsets to work around. If your line ends in a male JIC and your port is a 22mm metric flat face, this adapter bridges that gap cleanly.

Answer by: Customer Support on Jul 15, 2025, 7:29 AM
