Mjic X Fem.Flat China Metric

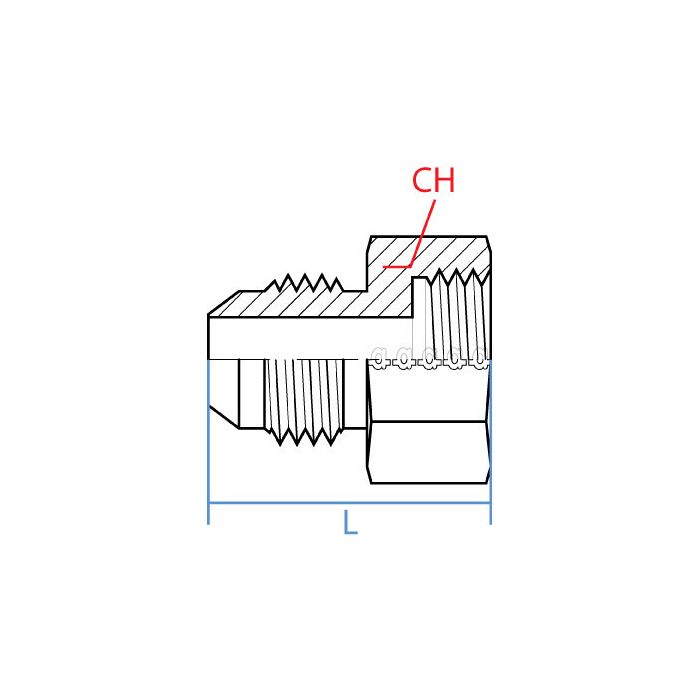

CH Width 27mm	L Length 28.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size 20mm	Side 2 Type Metric Flat Face	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022FC-08-20	Product Weight 0.12 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to connect a JIC fitting on one end to a metric flat face port on the other, this the right part for that?

Question by: Gary R on Sep 30, 2025, 6:48 AM

That's what this adapter is built for. One end is a 3/4-16 UNF male JIC, which is your 1/2 inch JIC side, and the other end is a female M20 x 1.5 metric flat face. So if you've got a JIC line meeting a Chinese metric flat face port, this bridges that gap in a straight configuration. Steel construction, 28.7mm in length, 27mm wrench width.

Answer by: Customer Support on Oct 1, 2025, 3:31 PM
