Mjic X Fem.Flat China Metric 9022FC-08-18

Specifications

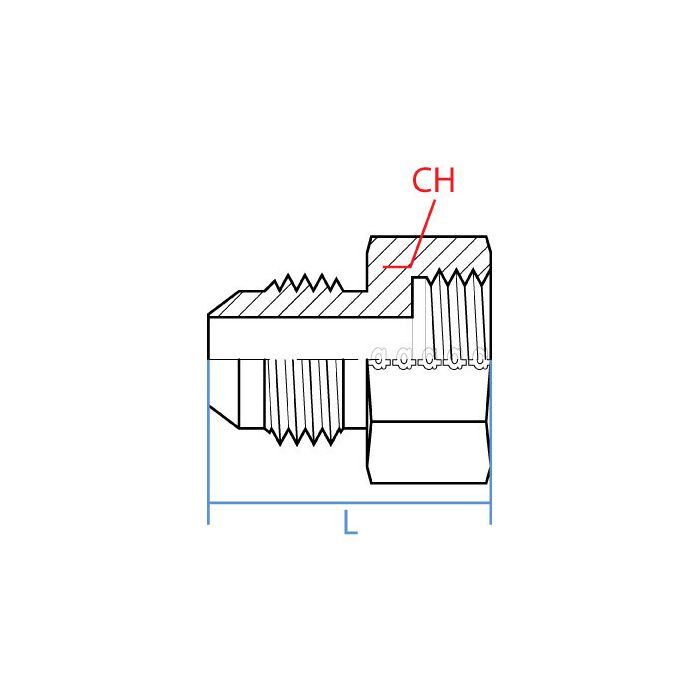

CH Width 24mm	L Length 26.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size 18mm	Side 2 Type Metric Flat Face	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022FC-08-18	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up alright for connecting a hydraulic line to a flat face port on my equipment? I just wanna be sure it's gonna seal up good.

Question by: Rusty G on Aug 27, 2025, 3:55 PM

This Adaptall fitting is designed to provide a reliable connection between a JIC (3/4 - 16 UNF) male end and a metric flat face (M18 X 1.5) female port. It's made of steel, so it should be durable enough for most hydraulic applications, provided it's properly torqued and maintained.

Answer by: Customer Support on Aug 29, 2025, 8:02 AM

Got a metric flat face port on a Chinese-made hydraulic block, M18 x 1.5 thread. Will the JIC side of this fitting thread into a standard 3/4-16 UNF male JIC connection without any issues?

Question by: Lance W on Mar 8, 2026, 5:26 PM

That matchup works. One end of this fitting is a male JIC with a 3/4-16 UNF thread, which seats into a standard female JIC 37-degree flare connection. The other end is a female metric flat face sized at M18 x 1.5. So if your block has that metric port and your hose or line terminates in a female JIC, this straight steel adapter bridges those two without any intermediate fittings.

Answer by: Customer Support on Mar 10, 2026, 1:15 PM
