Mjic X Fem.Flat China Metric

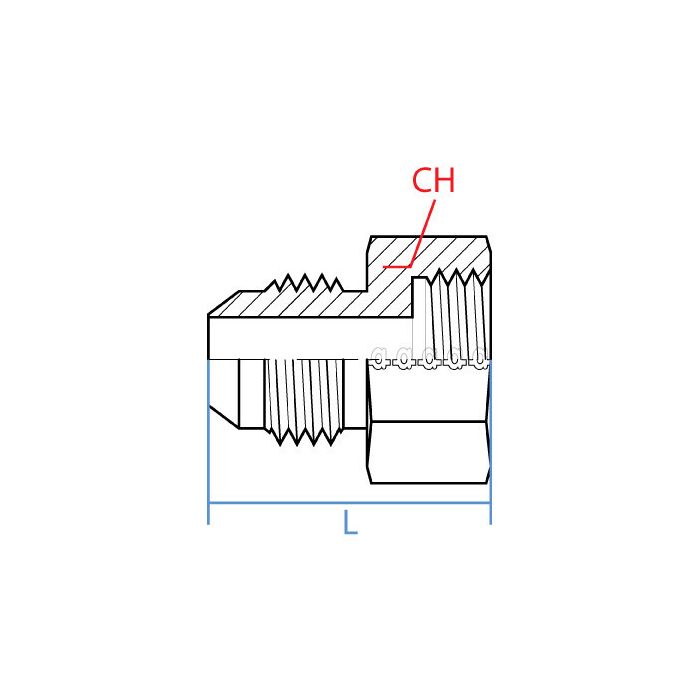

CH Width 24mm	L Length 24.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size 18mm	Side 2 Type Metric Flat Face	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022FC-06-18	Product Weight 0.08 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric flat face port on a manifold that's M18 x 1.5 and need to tie into a JIC line on the other end, this the right fitting for that?

Question by: Lee J on Dec 12, 2025, 4:01 PM

That's what this one's built for. One end is a 3/8" Male JIC with a 9/16-18 UNF thread, and the other end is a Female Metric Flat Face at M18 x 1.5. Straight configuration, steel construction, so it'll hold up in a standard hydraulic hydraulic connections setup without any fuss.

Answer by: Customer Support on Dec 13, 2025, 8:03 PM
