Mjic X Fem.Flat China Metric

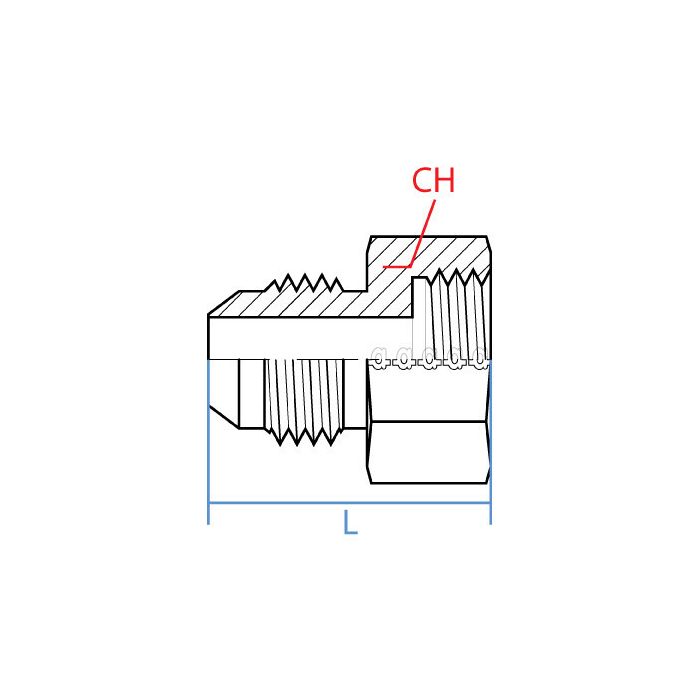

CH Width 20.5mm	L Length 23.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size 16mm	Side 2 Type Metric Flat Face	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022FC-06-16	Product Weight 0.06 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric port on a chinese-made hydraulic block, M16 x 1.5 threads, and need to tie into a JIC line on the other end. this the right piece for that?

Question by: Brent C on Aug 10, 2025, 10:30 AM

That's what this adapter is built for. One end is a male JIC fitting with 9/16-18 UNF threads, which covers a 3/8 inch JIC line. The other end is a female metric flat face port at M16 x 1.5. Steel construction, straight configuration. If your block has that M16 x 1.5 female port and you're running a JIC hydraulic line, this adapter makes that connection directly.

Answer by: Customer Support on Aug 11, 2025, 4:07 PM
