Male Jic-Female Metric Swivel

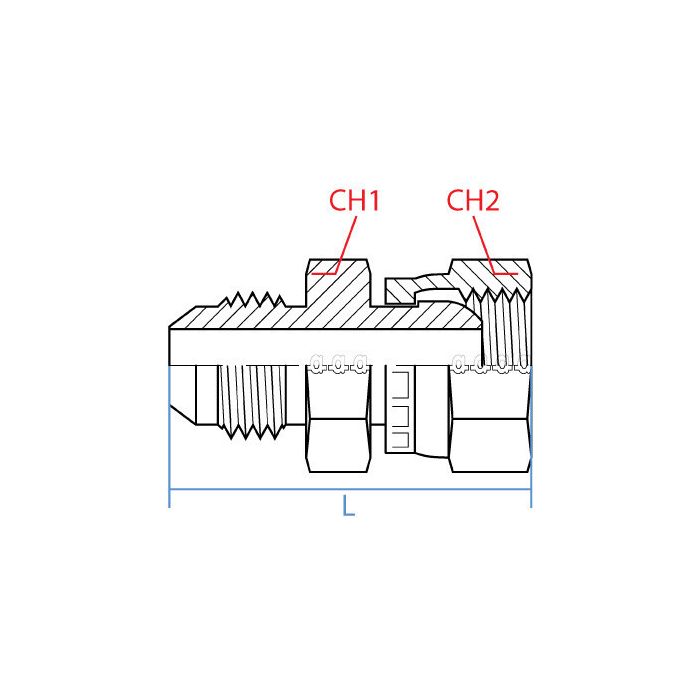

CH1 Width 27mm	CH2 Width 27mm	L Length 49mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-10-S12-20	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

So, this fitting... it's steel, right? Just makin' sure.

Question by: Lee C on Jul 2, 2025, 3:06 PM

Yes, this Adaptall fitting is made of steel for durability.

Answer by: Customer Support on Jul 3, 2025, 8:00 PM

trying to hook a 7/8-14 UNF JIC male into a metric DIN tube line, is that what this fitting is for?

Question by: Sherry B on Feb 1, 2026, 11:38 AM

For adapting between those two connection styles, it matches a 7/8 - 14 UNF male JIC on one end (5/8 inch size) and a female DIN tube connection on the other end with M20 x 1.5 threads (S12 size).

Answer by: Customer Support on Feb 2, 2026, 11:49 AM
