Male Jic-Female Metric Swivel

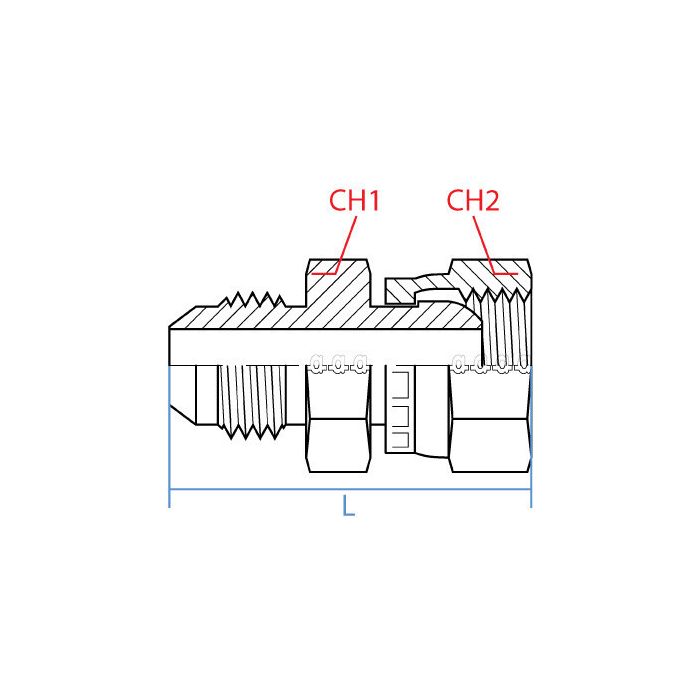

CH1 Width 25mm	CH2 Width 27mm	L Length 47mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-10-L12-18	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

So this here is steel, right? Just making sure it won't rust out on me.

Question by: Chad R on Jan 21, 2026, 6:05 PM

Yes sir, the adapter is made from durable steel. This ensures it can withstand demanding industrial environments, offering longevity and robust performance.

Answer by: Customer Support on Jan 23, 2026, 11:39 AM

got a hose end that’s 7/8-14 UNF JIC male, will this adapter mate up to it and still give me an M18 x 1.5 metric female on the other side?

Question by: Merle W on Jul 10, 2025, 8:48 AM

Match the ends by thread callout and gender. One side is a 7/8 - 14 UNF male JIC, and the other side is an M18 x 1.5 female DIN tube fitting, so it is meant to bridge those two connection types.

Answer by: Customer Support on Jul 12, 2025, 6:28 AM
