Male Jic-Female Metric Swivel

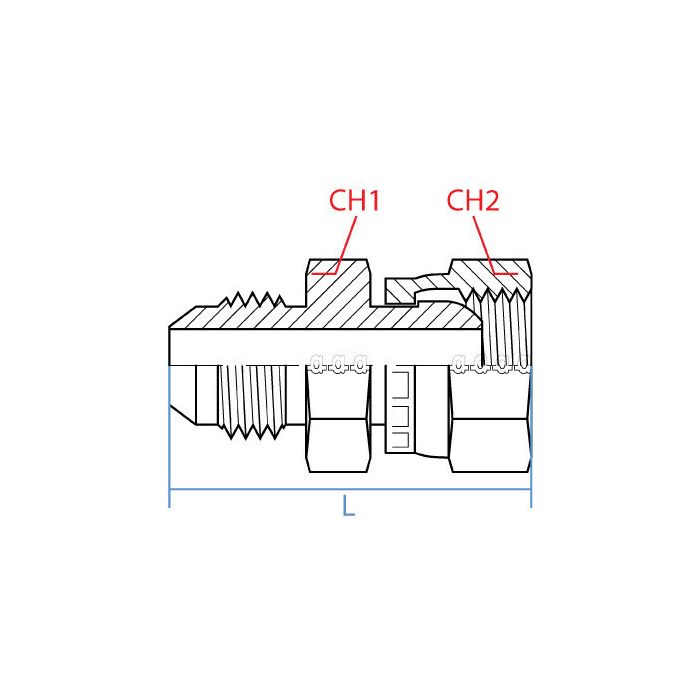

CH1 Width 22mm	CH2 Width 27mm	L Length 45mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-08-S12-20	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this work to connect a JIC fitting to a metric tube?

Question by: Dale R on Oct 23, 2025, 12:37 PM

This Adaptall fitting will connect a 1/2" JIC male end to a M20 X 1.5 DIN tube female end. It's a straight fitting made of steel.

Answer by: Customer Support on Oct 24, 2025, 6:02 PM

got a hydraulic line running 3/4-16 JIC on one end and need to tie into a metric port at M20 x 1.5 -- will this fitting bridge that gap straight through without needing extra adapters?

Question by: Duane B on Feb 7, 2026, 2:18 PM

That's what this one does. One end is a 3/4-16 UNF male JIC, the other is an M20 x 1.5 female metric swivel. Steel construction, straight body, and the swivel on the metric side lets you get the line seated without having to torque the whole assembly to align it. No intermediate pieces needed for that connection.

Answer by: Customer Support on Feb 8, 2026, 4:01 PM
