Male Jic-Female Metric Swivel

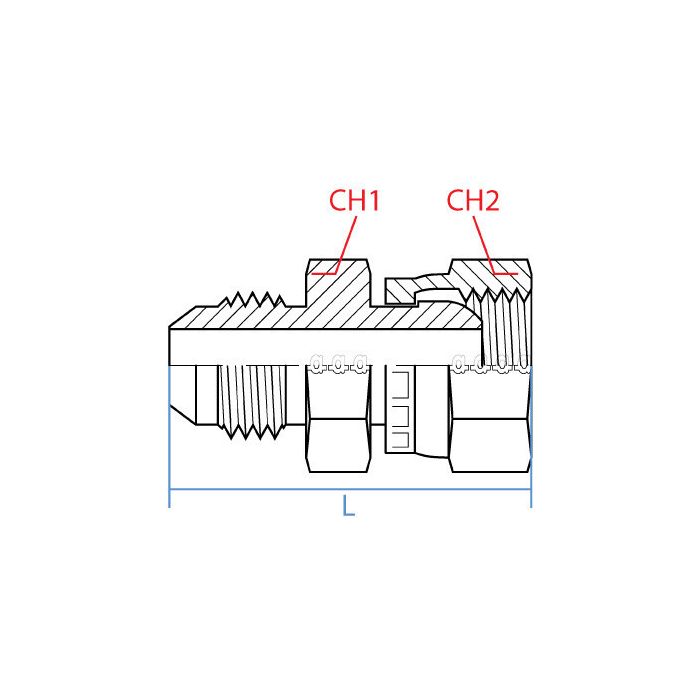

CH1 Width 20mm	CH2 Width 24mm	L Length 44mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-08-L12-18	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a 3/4-16 JIC male line up to a metric DIN tube port, is this the right adapter?

Question by: Bobby C on Jan 4, 2026, 2:02 PM

For a mixed-thread hookup like that, this fitting bridges a 3/4-16 UNF male JIC end (1/2 inch size) to an M18 x 1.5 female DIN tube swivel end (L12). It is a straight steel adapter meant for exactly that JIC to metric DIN tube transition.

Answer by: Customer Support on Jan 5, 2026, 5:17 PM
