Male Jic-Female Metric Swivel

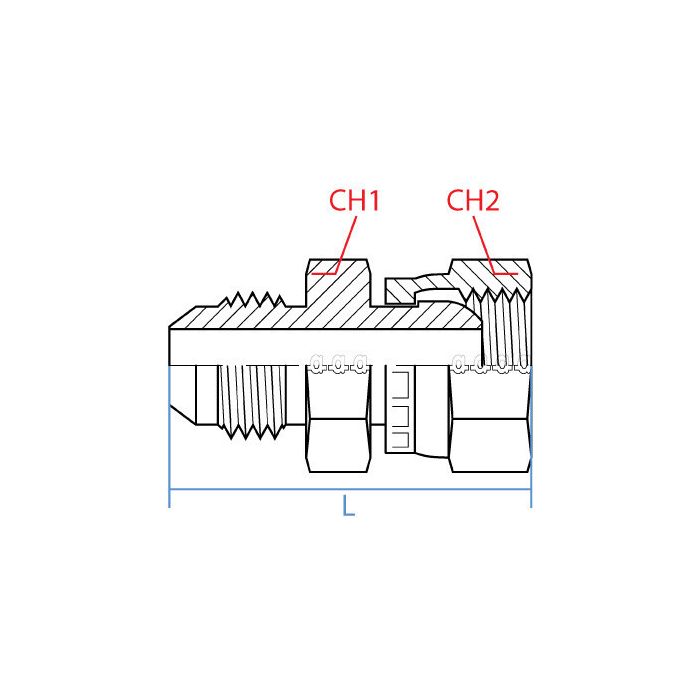

CH1 Width 21mm	CH2 Width 27mm	L Length 42mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number C1FV79	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-06-S12-20	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work to hook up a 3/8" JIC male to a M20 x 1.5 female swivel?

Question by: Phil E on Sep 13, 2025, 10:14 AM

Yes, this Adaptall fitting is manufactured to bridge that exact connection type. It adapts a 3/8" JIC male end to an M20 x 1.5 DIN tube female swivel.

Answer by: Customer Support on Sep 14, 2025, 12:31 PM

got a hose end that’s 9/16-18 JIC male on one side, and the other side needs to hook to an M20 x 1.5 metric tube swivel. is this the right adapter?

Question by: Shawn C on Mar 4, 2026, 7:45 PM

For bridging those two standards, it matches what you described. One end is a 3/8 inch JIC male with 9/16-18 UNF threads, and the other end is a female metric swivel for M20 x 1.5 DIN tube connections sized for S12 tube.

Answer by: Customer Support on Mar 6, 2026, 4:30 PM
