Male Jic-Female Metric Swivel

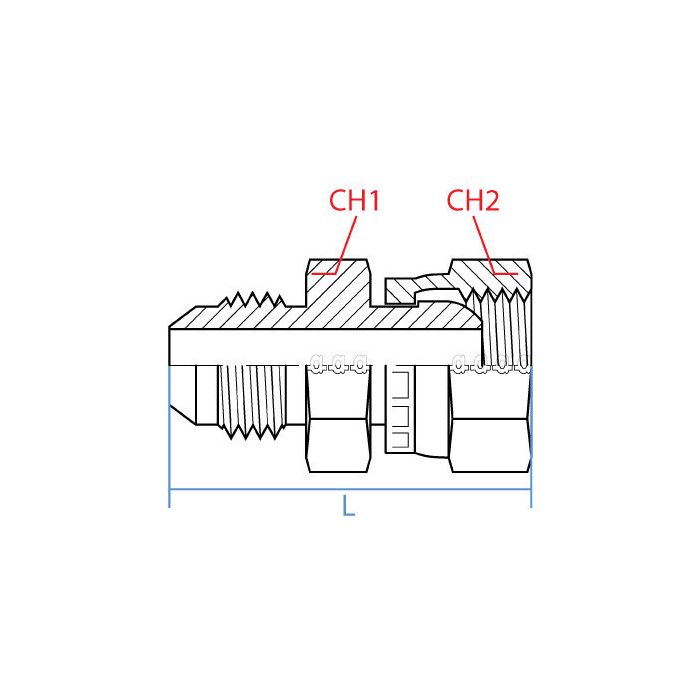

CH1 Width 20mm	CH2 Width 27mm	L Length 42mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-06-L15-22	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's 42mm long overall, is that enough clearance to get a wrench on both ends without em crowding each other out?

Question by: Marvin S on Apr 19, 2025, 9:58 PM

Both wrench flat sizes are different enough that standard wrenches shouldn't fight each other during tightening. The JIC side takes a 20mm wrench and the metric swivel end takes a 27mm, so you've got some size separation there. At 42mm total length, it's a compact fitting, but that gap between the two flat sizes means you can usually seat each end without one tool blocking the other. Just make sure you've got enough room in the line routing before you commit to the install.

Answer by: Customer Support on Apr 21, 2025, 1:30 PM
