Male Jic-Female Metric Swivel

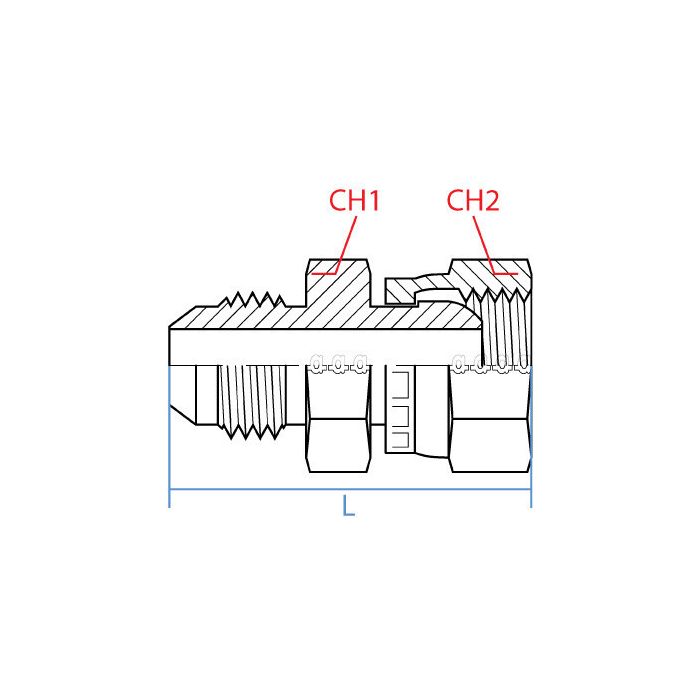

CH1 Width 19mm	CH2 Width 22mm	L Length 41mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size L10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number C1FQ80	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-06-L10-16	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

What size wrench do I need for this fitting? Looks like more than one size is involved.

Question by: Gene H on Jun 10, 2025, 9:20 PM

You'll need a 19mm wrench for one side and a 22mm wrench for the other.

Answer by: Customer Support on Jun 12, 2025, 6:12 AM

Got a metric port on my equipment and need to hook up a JIC line to it, this the kind of fitting that bridges that gap?

Question by: Tommy F on Nov 14, 2025, 8:25 AM

Exactly what it's built for. One end is a 9/16-18 UNF male JIC thread, the other is a female M16 x 1.5 metric swivel. The swivel side connects to a DIN tube fitting, so you can mate a standard JIC hydraulic line to a metric port without any adapter stacking. Both ends are steel, overall length runs 41mm, and the straight body keeps the hydraulic connections clean when space isn't an issue.

Answer by: Customer Support on Nov 16, 2025, 6:08 AM
