Male Jic-Female Metric Swivel

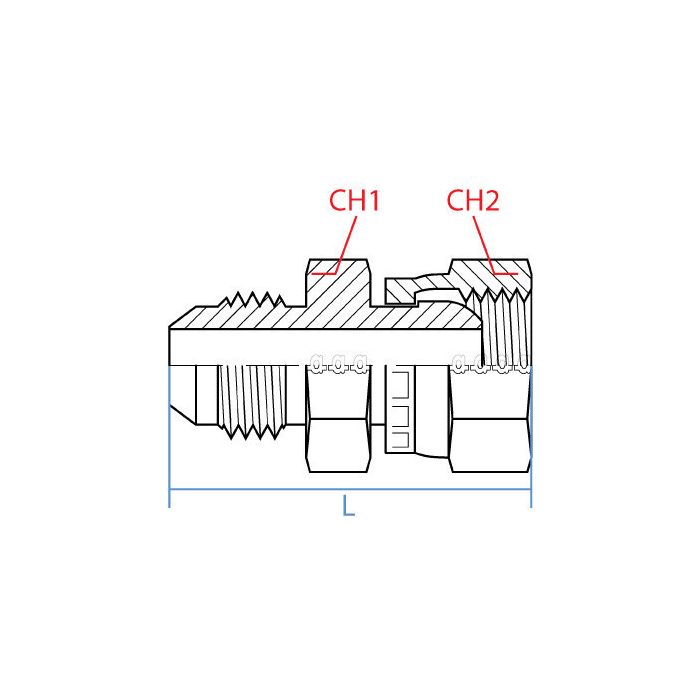

CH1 Width 14mm	CH2 Width 17mm	L Length 38mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender F	Side 2 Size L06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-05-L06-12	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a 5/16 jic hose to a metric din tube port, is this the right adapter?

Question by: Jimmy F on Jan 4, 2026, 12:13 PM

For that mix of ends, it matches up as a straight steel adapter with a 5/16 inch male JIC end called out as 1/2-20 UNF, and a female DIN tube swivel end called out as M12 x 1.5.

Answer by: Customer Support on Jan 6, 2026, 12:07 PM
