Male Jic-Female Metric Swivel

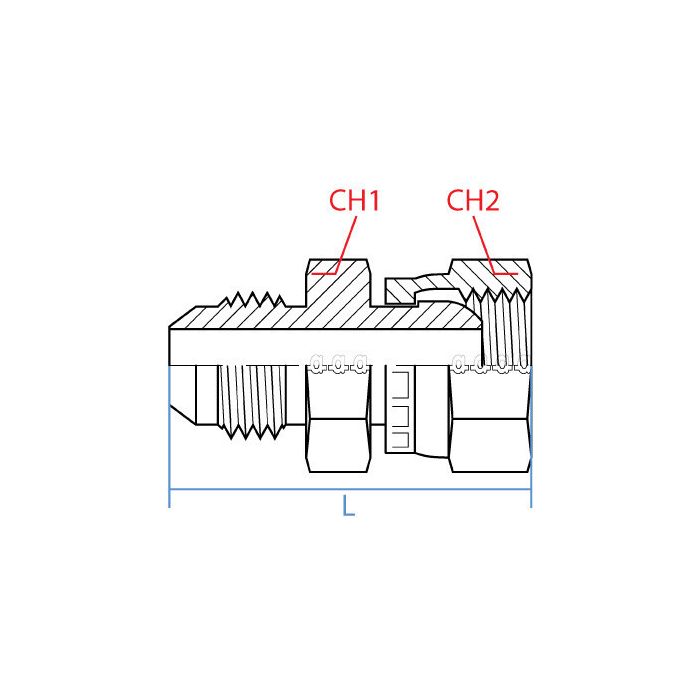

CH1 Width 16mm	CH2 Width 19mm	L Length 39mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-04-L08-14	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end with 7/16-20 JIC male on it, will this swivel right onto that?

Question by: Dwayne W on Aug 25, 2025, 8:51 PM

On the JIC side, it matches a 7/16-20 UNF male JIC in 1/4 inch size, so the female JIC swivel end is set up to thread onto that.

Answer by: Customer Support on Aug 27, 2025, 4:16 PM

got a line running metric DIN tube on one end and JIC fittings on the other, does this adapter cross those two over or am I looking at the wrong part?

Question by: Dale S on May 20, 2025, 7:33 PM

That's what this one does. One side is a male JIC with a 7/16-20 UNF thread, which is your standard 1/4 inch JIC connection. The other side is a female metric swivel with an M14 x 1.5 thread in the L08 DIN tube size. So if you've got a JIC line meeting a metric DIN tube end, this fitting bridges that gap straight through with no angle to it.

Answer by: Customer Support on May 22, 2025, 6:59 AM
