Male Jic-Female Metric Swivel

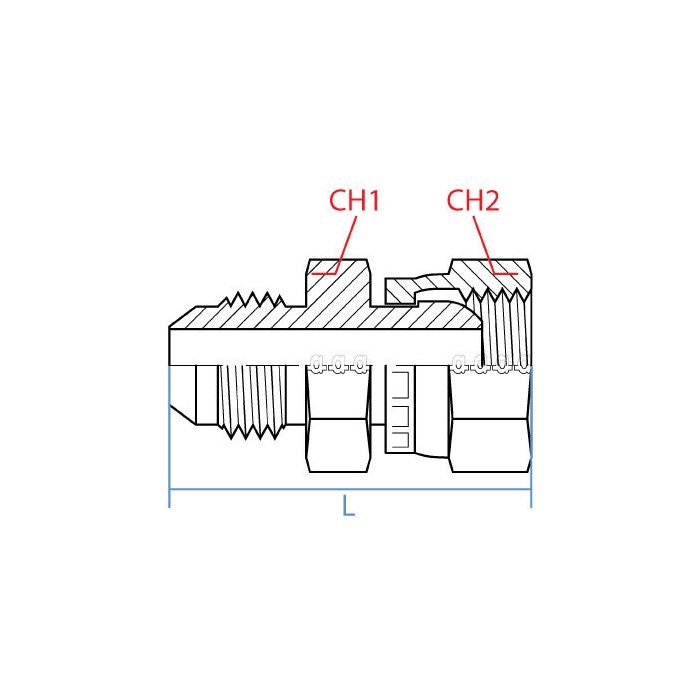

CH1 Width 14mm	CH2 Width 17mm	L Length 37mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender F	Side 2 Size L06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-04-L06-12	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 1/4 JIC hose up to a metric DIN tube port, is this the right adapter?

Question by: Larry B on May 18, 2025, 8:37 PM

For that mix of ends, it matches up as a straight steel adapter with a male JIC on Side 1 (7/16-20 UNF, 1/4 inch size) and a female DIN tube swivel on Side 2 (M12 x 1.5, L06 size).

Answer by: Customer Support on May 20, 2025, 6:30 AM

what's the thread size on the JIC side of this fitting? need to know if it'll mate up with a 7/16 line I got on a loader attachment

Question by: Dwayne M on Sep 3, 2025, 6:35 AM

The male JIC end runs a 7/16-20 UNF thread, so if your line is spec'd for that callout you're in good shape. That's a standard 1/4" JIC size, which shows up pretty commonly on smaller hydraulic lines and fittings in agricultural and loader equipment.

Answer by: Customer Support on Sep 4, 2025, 8:40 PM
