Male Bspp X Female Jic Swivel 9021-24-24

Specifications

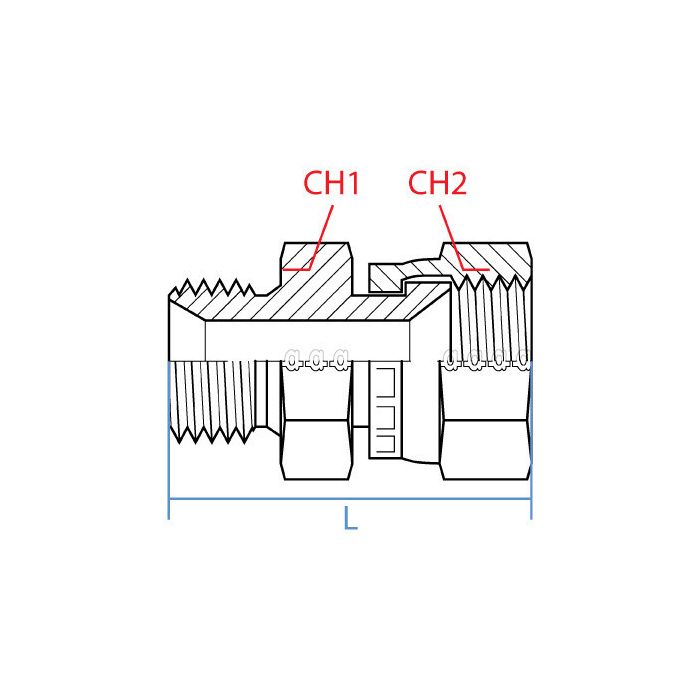

CH1 Width 55mm	CH2 Width 55mm	L Length 71mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/2 - 11	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Bspp	Side 2 Callout 1-7/8 - 12 UN	Side 2 Gender F	Side 2 Size 1-1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-24-24	Product Weight 1.30 lbs

Product Questions & Answers 3

Product Questions & Answers

i’ve got a hose end that’s 1-7/8 - 12 UN JIC, will this adapter screw right into it and still let me swivel it?

Question by: Wes C on Feb 10, 2026, 8:54 PM

With a female JIC swivel on one side in 1-7/8 - 12 UN, it mates to a matching male JIC thread and the swivel action lets you clock it during hookup instead of fighting the hose twist.

Answer by: Customer Support on Feb 12, 2026, 7:49 PM

What kind of pressures can this swivel handle?

Question by: Cody R on Jan 23, 2026, 8:03 PM

This swivel fitting is designed to support demanding applications requiring precision and strength in high-pressure scenarios.

Answer by: Customer Support on Jan 25, 2026, 11:53 AM

got a G 1-1/2 - 11 BSPP male port on a hydraulic block and need to tie into a JIC female line, this fitting do that?

Question by: Cheryl R on Jul 18, 2025, 9:09 AM

That's what this one's built for. The male side threads in at G 1-1/2 - 11 BSPP and the female side accepts a 1-7/8 - 12 UN JIC fitting, so it bridges those two thread standards in one piece. Both port sizes are 1-1/2 inch, and the swivel on the JIC end gives you some rotational flexibility when you're routing the line, which helps a lot when the connection angle isn't ideal straight off the block.

Answer by: Customer Support on Jul 19, 2025, 6:58 PM
