Male Bspp X Female Jic Swivel

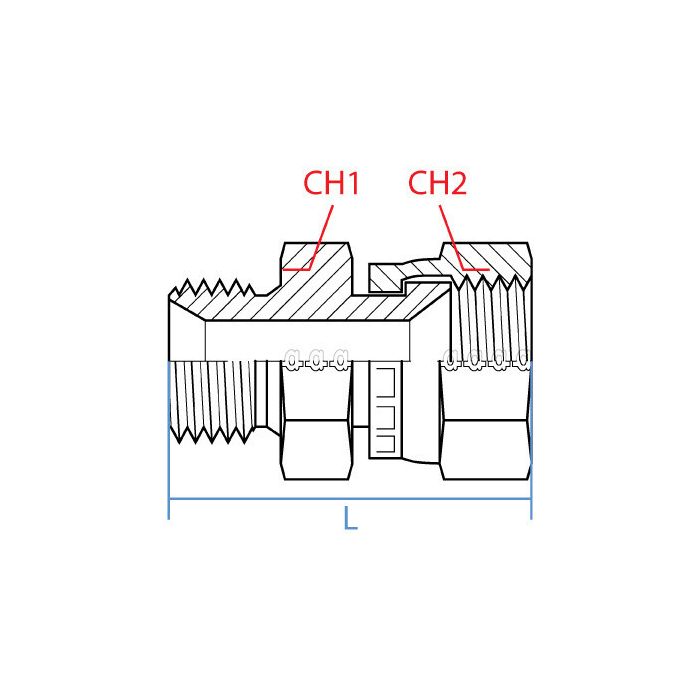

CH1 Width 50mm	CH2 Width 50mm	L Length 64.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout 1-5/8 - 12 UN	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-20-20	Product Weight 0.90 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a BSPP line coming off a European power unit and need to tie into a JIC fitting on the other end, this a straight shot or does it have some angle to it?

Question by: Sheila R on Sep 10, 2025, 7:58 AM

Straight through, no angle. Both ends run in line with each other, so it drops right in without any offset. The BSPP male side is G 1-1/4 - 11 thread, and the JIC female side is 1-5/8 - 12 UN, both in 1-1/4" size. Overall length comes in at 64.5mm, so factor that into your clearance before you order.

Answer by: Customer Support on Sep 11, 2025, 9:52 AM

trying to hook a G 1-1/4 - 11 male port up to a 1-1/4 JIC hose end, is this the right adapter?

Question by: Lynn M on Sep 3, 2025, 12:34 PM

For that exact thread match, it fits the job. One side is a G 1-1/4 - 11 BSPP male, and the other side is a 1-5/8 - 12 UN JIC female swivel, both in the 1-1/4 inch size.

Answer by: Customer Support on Sep 5, 2025, 8:44 AM
