Male Bspp X Female Jic Swivel

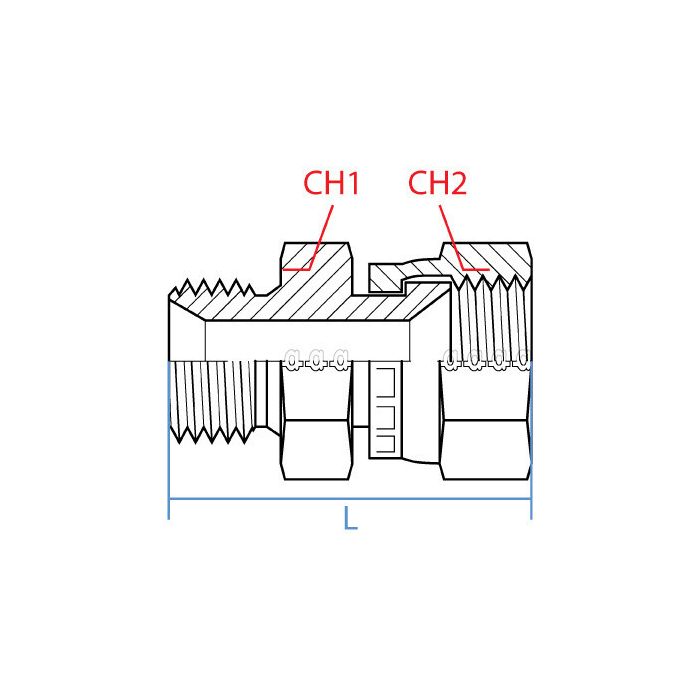

CH1 Width 50mm	CH2 Width 38mm	L Length 67mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-20-16	Product Weight 0.88 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay outside? I'm hooking up a hydraulic log splitter and it's gotta sit out in the weather.

Question by: Scott E on May 28, 2025, 7:47 PM

Steel construction should provide decent corrosion resistance for outdoor use, but keep in mind it's still steel. You might want to consider a rust inhibitor or coating for long-term exposure.

Answer by: Customer Support on May 30, 2025, 4:03 PM

Got a line running G 1-1/4 BSPP on the pump side and need to tie into a 1-5/16-12 JIC female connection on the other end. This fitting gonna bridge that gap straight through?

Question by: Larry A on Nov 3, 2025, 4:39 PM

Right thread combo for that exact situation. The male end is a G 1-1/4 - 11 BSPP and the female swivel end is 1-5/16 - 12 UN JIC, so it connects those two thread types in a straight configuration without any additional adapters in between. Steel construction, 67mm end to end, and the swivel on the JIC side gives you a little rotation to help with alignment when you're making up the connection.

Answer by: Customer Support on Nov 5, 2025, 6:05 AM
