Male Bspp X Female Jic Swivel 9021-16-16

Specifications

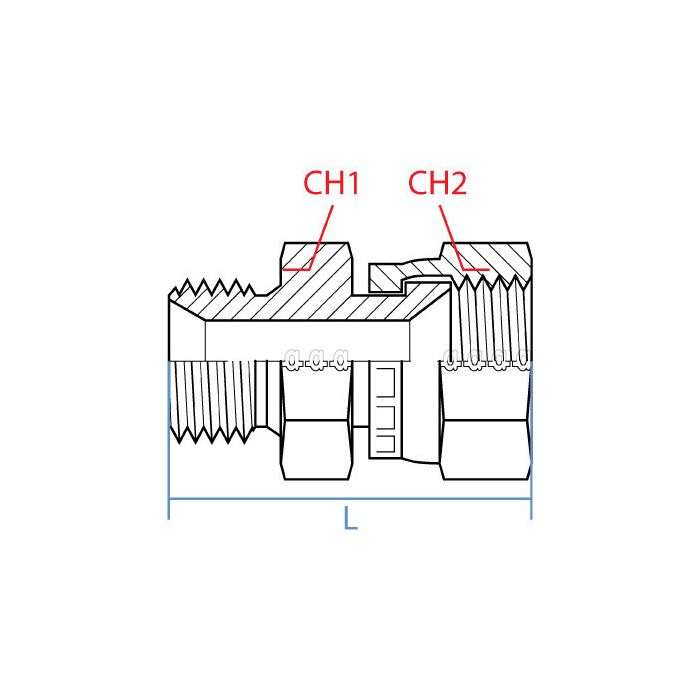

CH1 Width 41mm	CH2 Width 38mm	L Length 62mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Jic	Alternate Part Numbers Alternate Part Number 3402-16-16	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-16-16	Product Weight 0.65 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a line running G 1 BSPP on one end and JIC fittings on the other, will this adapter bridge that gap without needing extra pieces in between?

Question by: Dwight S on Dec 16, 2025, 9:17 AM

That's what this fitting handles. One side is a G 1-11 BSPP male thread, and the other is a 1-5/16-12 UN JIC female swivel, so it connects those two thread types directly in a single piece. No additional adapters needed in most setups like that.

Answer by: Customer Support on Dec 17, 2025, 8:14 PM

got a hose end that’s 1-5/16 - 12 UN JIC female. is this the right swivel to mate up to a G 1 - 11 BSPP male port?

Question by: Sheila M on Mar 25, 2026, 6:49 PM

Match the thread callouts and it lines up. This connector is a straight Male BSPP on one side (G 1 - 11, 1 inch, male) and a Female JIC swivel on the other (1-5/16 - 12 UN, 1 inch, female), so it is meant to join those two thread types together.

Answer by: Customer Support on Mar 26, 2026, 7:30 PM

What size is the Bspp male end on this fitting? I need to make sure it'll match up with my existing setup.

Question by: Earl D on Jul 11, 2025, 12:31 PM

It's made to fit a G 1 - 11 Bspp male thread, which is a 1-inch size.

Answer by: Customer Support on Jul 12, 2025, 3:29 PM
