Male Bspp X Female Jic Swivel

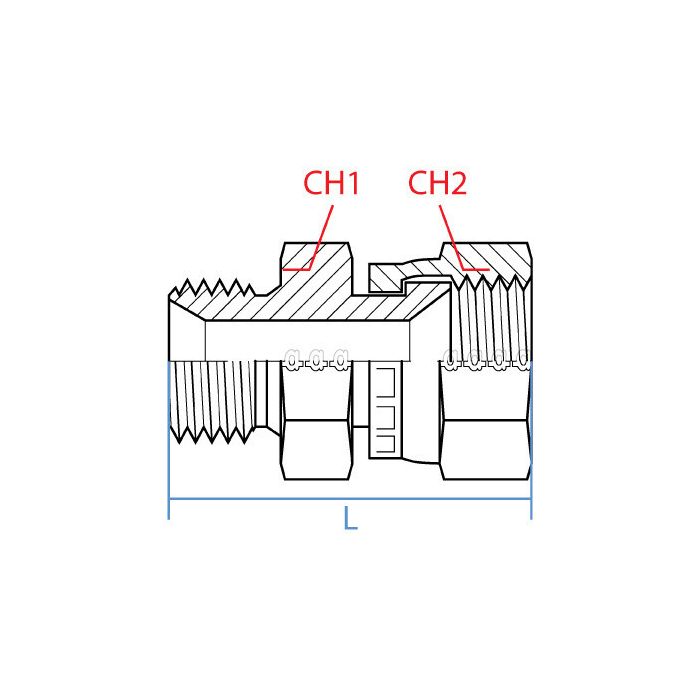

CH1 Width 35mm	CH2 Width 38mm	L Length 61mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-12-16	Product Weight 0.50 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s G 3/4 - 14 BSPP male on one side and i need to hook it to a 1 inch JIC line, is this the right adapter?

Question by: Johnny W on Jan 14, 2026, 6:23 PM

For tying those two standards together, it’s a straight steel adapter with a 3/4 inch male BSPP side called out as G 3/4 - 14, and a 1 inch female JIC swivel side called out as 1-5/16 - 12 UN.

Answer by: Customer Support on Jan 16, 2026, 4:54 PM

Got a machine running JIC fittings on the hydraulic lines and the pump port is BSPP, this the right piece to bridge that gap?

Question by: Bobby E on Aug 14, 2025, 1:09 PM

Yeah, that's exactly what this fitting is built for. One end is a 3/4" male BSPP with a G 3/4-14 thread, and the other end is a 1" female JIC swivel with a 1-5/16-12 UN thread. Straight configuration, steel construction, so it'll hold up in a working hydraulic setup without any adapters stacked on top of it.

Answer by: Customer Support on Aug 15, 2025, 1:41 PM
