Male Bspp X Female Jic Swivel 9021-12-12

Specifications

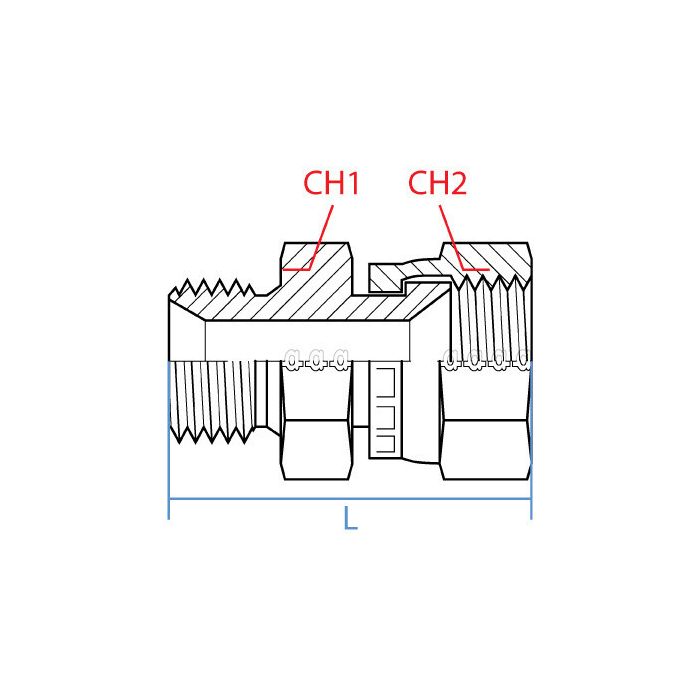

CH1 Width 32mm	CH2 Width 32mm	L Length 53.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 1-1/16 - 12 UN	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Jic	Alternate Part Numbers Alternate Part Number MI-02116191, Alternate Part Number MINO-03671J02533	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-12-12	Product Weight 0.40 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work for connecting a BSPP male to a JIC female line, or am I missing something?

Question by: Ross M on Aug 13, 2025, 8:07 PM

This Adaptall fitting is indeed made to connect a male BSPP fitting to a female JIC fitting. It's a straight connector made of steel, so it should hold up well in industrial settings.

Answer by: Customer Support on Aug 15, 2025, 8:04 PM

got a hose end that’s G 3/4 - 14 BSPP on one side and I need to land it on a JIC port. Is this the right adapter?

Question by: Warren L on Jul 4, 2025, 10:00 AM

For a BSPP male to JIC female connection, this fitting matches those thread callouts: Side 1 is male BSPP G 3/4 - 14, and Side 2 is a female JIC swivel with 1-1/16 - 12 UN threads. It is a straight steel connector, and both ends are listed as 3/4 inch size.

Answer by: Customer Support on Jul 6, 2025, 7:42 AM

What thread types are on each end of this fitting, and are they both the same size?

Question by: Cindy M on Jan 6, 2026, 5:18 PM

Both ends are 3/4" in size, but the thread types are different. One end is Male BSPP with a G 3/4 - 14 thread, and the other is Female JIC running a 1-1/16 - 12 UN thread. So you got yourself a straight adapter that bridges those two standards without any reducers or extra pieces in between.

Answer by: Customer Support on Jan 8, 2026, 10:41 AM
