Male Bspp X Female Jic Swivel

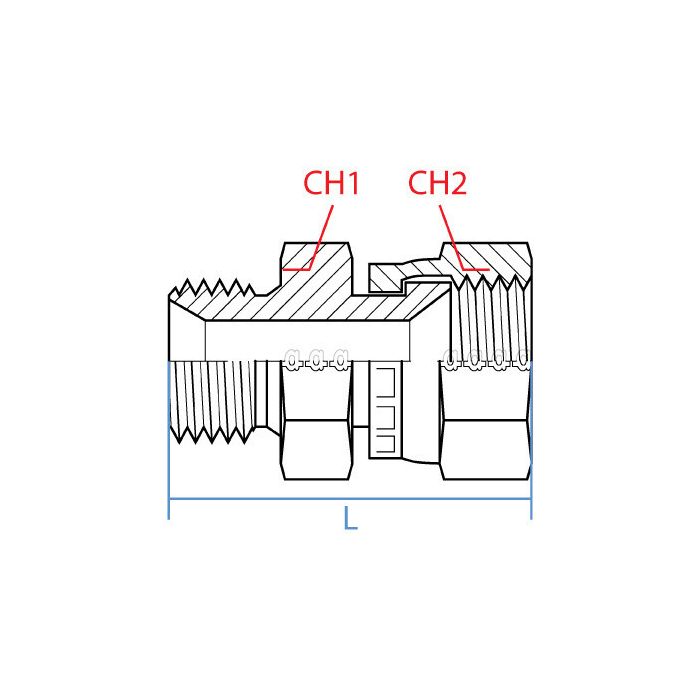

CH1 Width 30mm	CH2 Width 27mm	L Length 52mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 5/8 - 14	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender F	Side 2 Size 5/8"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-10-10	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

Trying to hook a BSPP male port to a JIC hose end, is this the right adapter or am I mixing up thread types?

Question by: Lee B on Nov 26, 2025, 10:32 AM

For that exact mix, it matches up: Side 1 is a male BSPP with a G 5/8 - 14 thread, and Side 2 is a female JIC swivel with a 7/8 - 14 UNF thread. It is a straight steel adapter meant to join those two connection types.

Answer by: Customer Support on Nov 27, 2025, 1:46 PM
