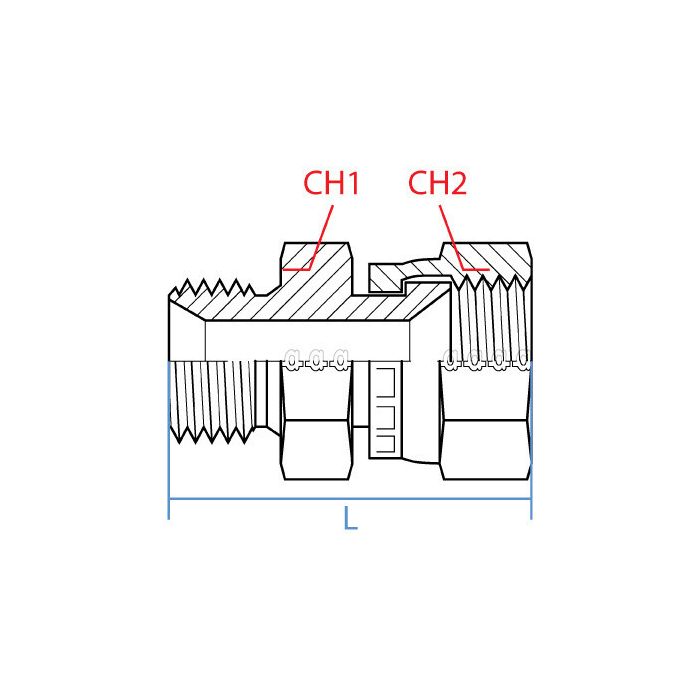

Male Bspp X Female Jic Swivel

CH1 Width 30mm	CH2 Width 24mm	L Length 49mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 5/8 - 14	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-10-08	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a European-made hydraulic unit with BSPP ports and I'm trying to tie it into my JIC hose lines. This the right fitting for that?

Question by: Rusty F on Jan 22, 2026, 8:24 PM

Connecting BSPP-ported equipment to JIC hose assemblies is exactly what this adapter handles. The male end is G 5/8-14 BSPP, which threads into metric hydraulic ports common on European and international machinery. The other end is a 3/4-16 UNF female JIC swivel that accepts standard 37-degree flare fittings used across North American hydraulic systems. Steel construction and a straight configuration keep the transition clean and in-line.

Answer by: Customer Support on Jan 24, 2026, 3:10 PM
