Male Bspp X Female Jic Swivel 9021-08-10

Specifications

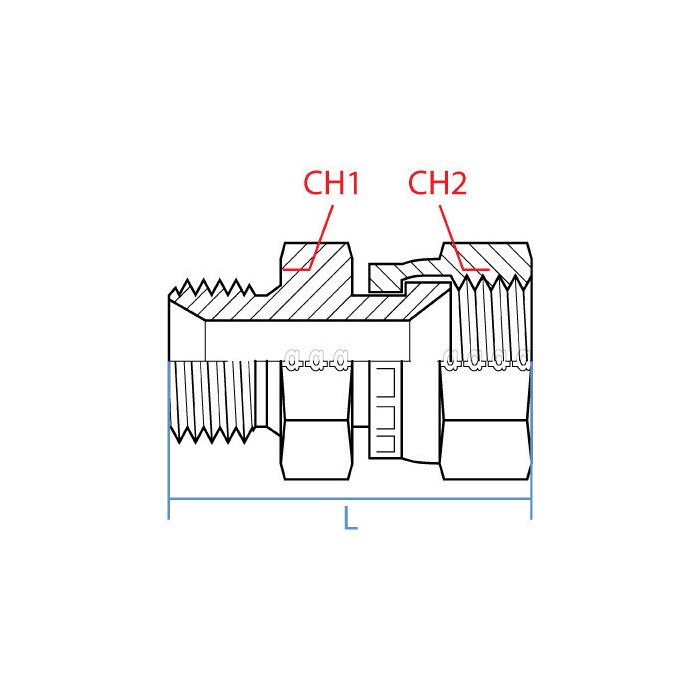

CH1 Width 27mm	CH2 Width 25mm	L Length 49mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender F	Side 2 Size 5/8"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-08-10	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line running G 1/2 BSPP on the equipment side and need to tie into a JIC fitting on the hose end, this the right adapter for that?

Question by: Troy E on Jun 19, 2025, 5:11 PM

That's exactly the application this piece covers. One end is a G 1/2 - 14 male BSPP, and the other is a 7/8 - 14 UNF female JIC swivel. The swivel on the JIC side helps take the twist out of the connection during installation, which makes life easier when you're working in a tight spot. Steel construction throughout, so it holds up in the kind of industrial environments where these fittings typically see service.

Answer by: Customer Support on Jun 20, 2025, 5:50 PM

got a hose end that’s 7/8-14 UNF JIC. is this the one that’ll swivel on that side?

Question by: Dustin Y on Nov 21, 2025, 9:23 AM

On the JIC side, you’re getting a 7/8 - 14 UNF female JIC swivel connection. The other end is a G 1/2 - 14 male BSPP, so it’s meant to adapt between those two thread types.

Answer by: Customer Support on Nov 23, 2025, 6:18 AM

What kind of steel is this made from?

Question by: Terry M on Oct 2, 2025, 7:44 AM

Crafted from high-quality steel, this adapter is built for durability and reliable performance in industrial settings.

Answer by: Customer Support on Oct 3, 2025, 10:12 AM
