Male Bspp X Female Jic Swivel 9021-06-08

Specifications

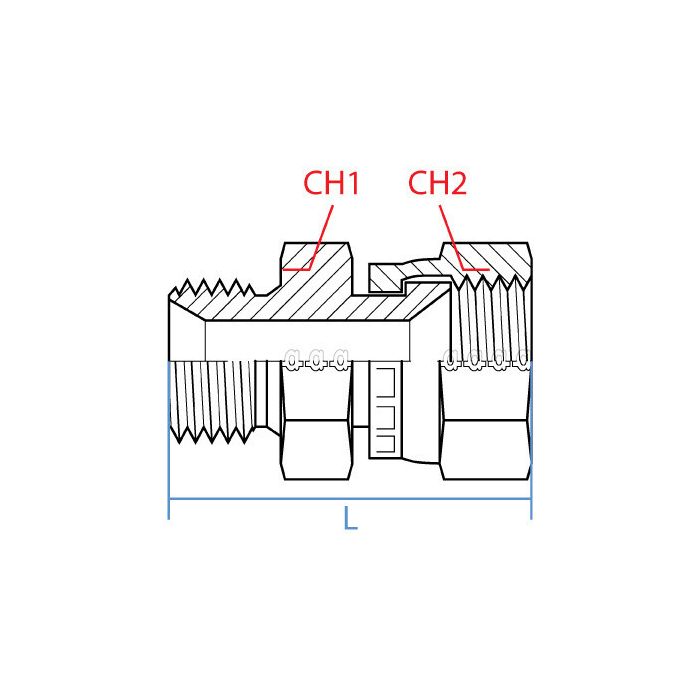

CH1 Width 22mm	CH2 Width 22mm	L Length 42mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-06-08	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

So this here fitting has a swivel on one end? Just wanna make sure I'm readin' it right.

Question by: Wes C on Jul 15, 2025, 6:01 PM

Yes sir, that female JIC side does swivel. It lets you rotate things during assembly so you don't put too much stress on your lines.

Answer by: Customer Support on Jul 17, 2025, 9:25 AM

Got a machine running BSPP ports on the pump side and JIC fittings on the lines, will this adapter bridge that gap without needing extra pieces in between?

Question by: Diane W on Jun 15, 2025, 3:45 PM

That's exactly the job this fitting handles. The male end threads into a G 3/8-19 BSPP port, and the female swivel end accepts a 3/4-16 UNF JIC fitting, so you're connecting those two thread standards directly with one piece. No extra unions or adapters needed in between.

Answer by: Customer Support on Jun 17, 2025, 9:29 AM

got a hose end with a 3/4-16 jic on it. is this the piece that’ll swivel onto that and then thread into a G 3/8-19 port?

Question by: Marvin T on Jan 13, 2026, 3:13 PM

For that setup, it matches: the female end is a 3/4-16 UNF JIC swivel (1/2 inch size) and the male end is G 3/8-19 BSPP (3/8 inch size). It is a straight steel adapter, so it is meant to bridge a JIC connection over to a BSPP threaded port.

Answer by: Customer Support on Jan 15, 2026, 6:14 AM
