Male Bspp X Female Jic Swivel

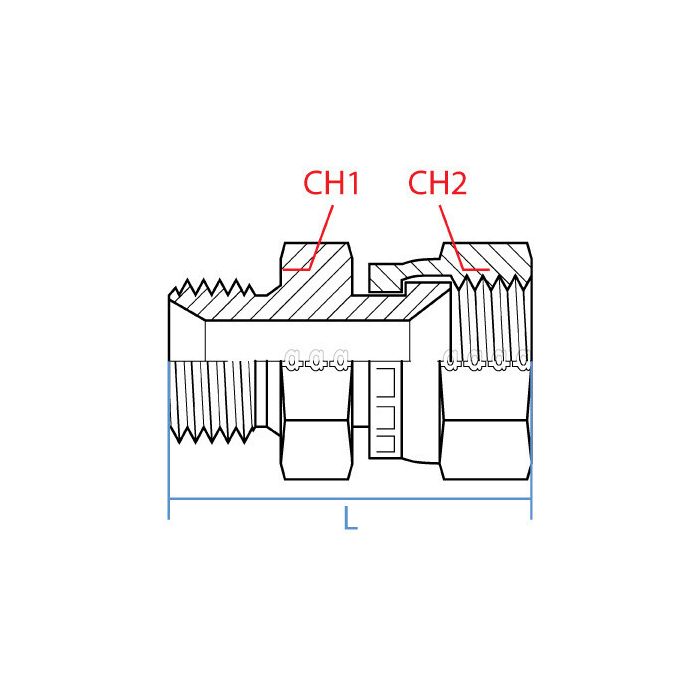

CH1 Width 22mm	CH2 Width 17mm	L Length 36mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-06-04	Product Weight 0.11 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a BSPP port on a pump and need to tie into a JIC line, this a straight shot adapter or does it got some kind of angle to it?

Question by: Vince M on Apr 18, 2025, 3:10 PM

Straight configuration on this one, no angle. The male end is G 3/8-19 BSPP and the female JIC end is 7/16-20 UNF, so it goes in line without any change in direction. Overall length is 36mm, which keeps things pretty compact if you're working in a tight spot. The female JIC side swivels, so you get some flexibility when you're torquing everything down without twisting up your line.

Answer by: Customer Support on Apr 20, 2025, 6:10 AM

trying to hook a BSPP port to a JIC hose, is this the right adapter size or am i off a step

Question by: Earl W on Oct 11, 2025, 7:21 PM

For matching up those two thread styles, this adapter is a straight Male BSPP to Female JIC swivel. Side 1 is a G 3/8 - 19 male BSPP thread, and side 2 is a 7/16 - 20 UNF female JIC thread, which is the common 1/4 inch JIC size.

Answer by: Customer Support on Oct 13, 2025, 7:13 AM
