Male Bspp X Female Jic Swivel 9021-04-05

Specifications

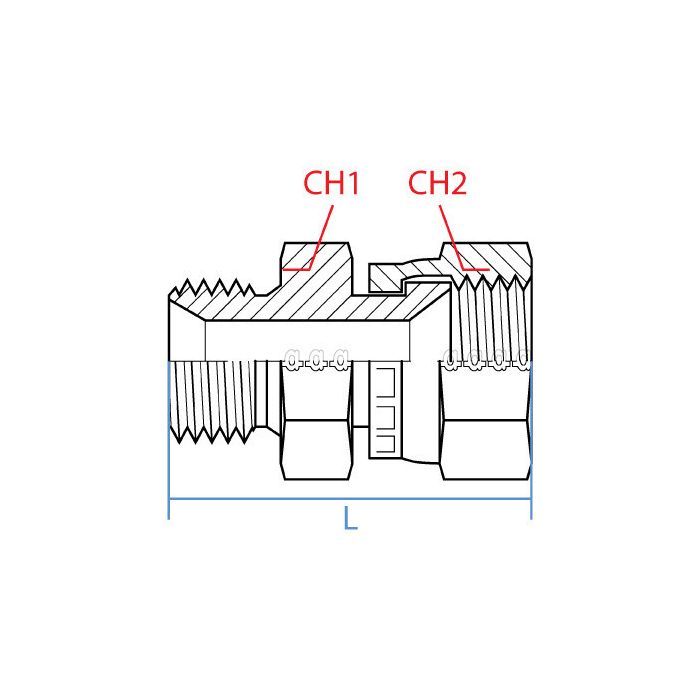

CH1 Width 19mm	CH2 Width 16mm	L Length 36.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout 1/2 - 20 UNF	Side 2 Gender F	Side 2 Size 5/16"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-04-05	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work to connect a 1/4" BSPP male to a 1/2" JIC hose?

Question by: Dean B on Nov 11, 2025, 8:38 AM

This Adaptall adapter is designed to connect a G 1/4 - 19 male BSPP fitting to a 1/2 - 20 UNF female JIC swivel fitting.

Answer by: Customer Support on Nov 12, 2025, 8:47 PM

got a hose end thats 1/2-20 JIC swivel, will this screw onto it and then go into a G 1/4 BSPP port?

Question by: Lance H on Mar 17, 2026, 6:20 AM

Built for that exact thread combo, one end is a 1/2 - 20 UNF female JIC swivel and the other end is a G 1/4 - 19 male BSPP. It is a straight steel adapter meant to join those two connection types.

Answer by: Customer Support on Mar 18, 2026, 7:59 PM

what's the thread size on the male end of this fitting? trying to figure out if it'll mate up with a G 1/4 port on a pump housing we got

Question by: Curt R on Apr 21, 2025, 11:27 AM

The male end runs a G 1/4 - 19 BSPP thread, so if your pump housing has a matching G 1/4 port, you're in good shape. The female side swivels and carries a 1/2 - 20 UNF JIC connection, which is a 37-degree flare seat standard on a lot of hydraulic hose ends. The swivel feature gives you a little wiggle room during installation so you're not fighting the hose to get alignment right.

Answer by: Customer Support on Apr 23, 2025, 6:47 AM
