Male Bspp X Female Jic Swivel 9021-02-04

Specifications

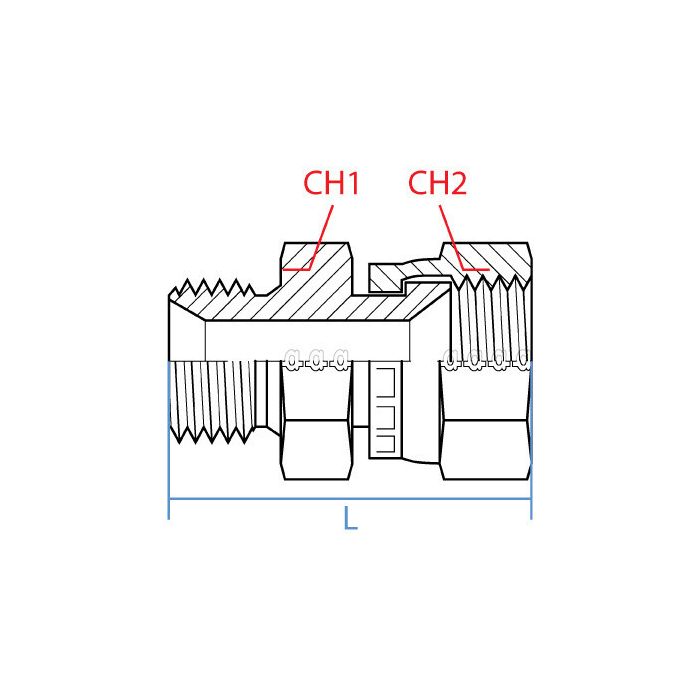

CH1 Width 14mm	CH2 Width 14mm	L Length 33mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-02-04	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end with a 1/4 JIC female swivel, will this adapt it over to a G 1/8-28 BSPP male port?

Question by: Tammy J on Jul 14, 2025, 8:59 AM

Use it when you need to go from a G 1/8-28 BSPP male connection on one side to a 7/16-20 UNF female JIC swivel on the other. The JIC end is a 1/4 size swivel made for 37 degree flare hookups.

Answer by: Customer Support on Jul 15, 2025, 2:47 PM

Will this here fitting hold up alright in a hydraulic setup on my tractor? Just wanna make sure it can handle the pressure and whatnot.

Question by: Randy T on Jun 14, 2025, 7:00 AM

This steel fitting is designed to provide a reliable connection between BSPP and JIC standards, which are commonly used in hydraulic systems.

Answer by: Customer Support on Jun 15, 2025, 2:52 PM

Got a hydraulic line running 1/4" JIC female on one end and the equipment port is BSPP, this fitting bridge that gap or do I need something else in between?

Question by: Connie H on Jan 11, 2026, 12:20 PM

Yeah, that's exactly what this one's for. The male end is G 1/8-28 BSPP, so it threads straight into a parallel-thread British Standard port, and the female JIC side accepts your 37-degree flare connection at 7/16-20 UNF. No additional adapter needed between the two. The swivel on the JIC end also lets you rotate the line during assembly so you're not fighting the hose to get everything lined up.

Answer by: Customer Support on Jan 13, 2026, 6:54 AM
